Installation Guide for AEG Washing Machine 157050361-A
Quick installation guide for the AEG washing machine model 157050361-A. Includes essential steps for removing transit bolts, leveling the unit, and connecting water inlet and drain hoses.
Table of contents
Manual images
Click an image to enlargeQuick Installation Guide
Before proceeding with the installation, it is essential to read the safety information provided in the main User Manual. Ensure the appliance is placed on a stable, level surface and that you have all necessary tools before beginning.
Unpacking and Removing Transit Bolts
Before using the washing machine, you must remove the transit bolts used for shipping. Failure to do so can cause severe damage to the appliance and cause excessive vibration.
- Remove all packaging materials.
- Locate the transit bolts on the back of the machine.
- Unscrew and remove the bolts as shown in the diagram.
Leveling the Washing Machine
Proper leveling is crucial to prevent excessive vibration and noise during operation.
- Place a spirit level on top of the machine.
- Adjust the leveling feet by screwing or unscrewing them until the machine is perfectly level.
- Ensure all feet are in firm contact with the floor.
Water Inlet Connection
Connect the water inlet hose to a cold water tap.
- Ensure the water pressure is between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa).
- Tighten the connection securely to prevent leaks.
- Check that the rubber seal is correctly positioned inside the connector.
Drain Hose Installation
The drain hose must be positioned correctly to ensure proper drainage.
- The drain hose must be installed at a height between 600 mm and 1000 mm from the floor.
- Ensure the hose is not kinked, crushed, or restricted.
- The hose can be connected to a sink, a standpipe, or a wall drain, provided it meets the height requirements.
Manufacturer information
AEG Powertools
Practical help
Common problems
Machine vibrates excessively during spin cycle
Ensure the machine is perfectly level using a spirit level and adjust the feet so all four are in firm contact with the floor.
Water leakage at the inlet connection
Check that the hose is tightened securely and that the rubber seal is properly seated inside the connector.
Before use
- Remove all transit bolts from the back of the machine
- Verify water pressure is between 0.5 and 10 bar
- Ensure the floor surface is level and stable
- Check that the drain hose is not kinked
- Verify all hose connections are tight
Specs in practice
- Water Pressure
- 0.5-10 bar (0.05-1.0 MPa) is required for the machine to operate correctly.
- Drain Height
- The drain hose must be positioned between 600 mm and 1000 mm from the floor level.
Images and diagrams
- Step 1: Removing transit bolts from the rear panel

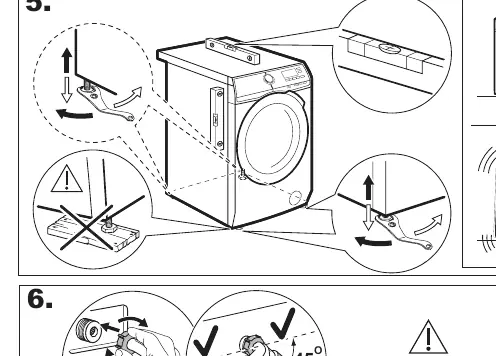

- Step 5: Leveling the machine using the adjustable feet

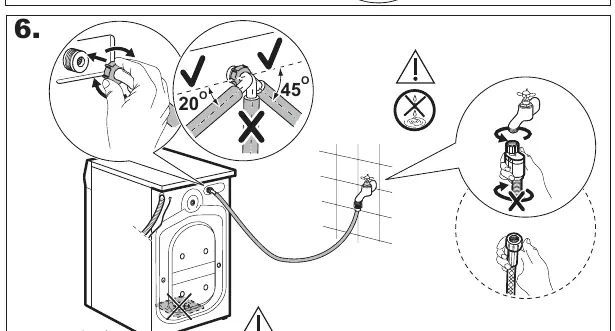

- Step 6: Connecting the water inlet hose to the tap
- Step 7: Correct positioning of the drain hose
Model compatibility
- Compatible with standard 3/4 inch water taps.
- Drain hose height requirements must be strictly followed to prevent siphoning.
