User Manual for AGM 10-inch LED Ring Light
Quick guide for the AGM 10-inch LED Ring Light. Learn how to assemble the tripod, mount your phone, pair the Bluetooth remote, and adjust lighting modes.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential instructions for setting up and using your AGM 10-inch LED Ring Light. Ensure you have all components, including the ring light, tripod, phone holder, and Bluetooth remote shutter. The device is designed for indoor use and requires a 5V-2A USB power source.
Safety Information
- Indoor use only: Do not use in rain, bathrooms, or near water sources.
- Electrical safety: Never change the light bulb while plugged in. Do not alter wiring or power supply.
- Handling: Do not pull the power cord to unplug. Keep away from children.
- Maintenance: Stop using if the unit or power cord is damaged.
Specifications
- External diameter: 255mm
- Power: 12W
- Power supply: USB 5V-2A
- Color temperature: 3000K-6000K
- Color Rendering Index: 85 Ra
- Bead Type: 2835 0.2W (128 pcs)
Assembly
- Flexible stand mount: Screw the flexible stand mount into the ring light. Do not over-tighten.
- Ball head: Screw the ball head into the bottom of the ring light.
- Tripod: Screw the tripod into the bottom of the ball head. Ensure the tripod legs are fully extended and stable on a flat surface.
- Phone holder: Secure your smartphone into the holder by opening the spring-adjusted flaps.
Remote Shutter Pairing
- Install the battery in the remote with the positive electrode facing up.
- Turn on the power button on the side of the remote. The LED will flash.
- On your smartphone, search for Bluetooth devices and select "AB Shutter3" to pair.

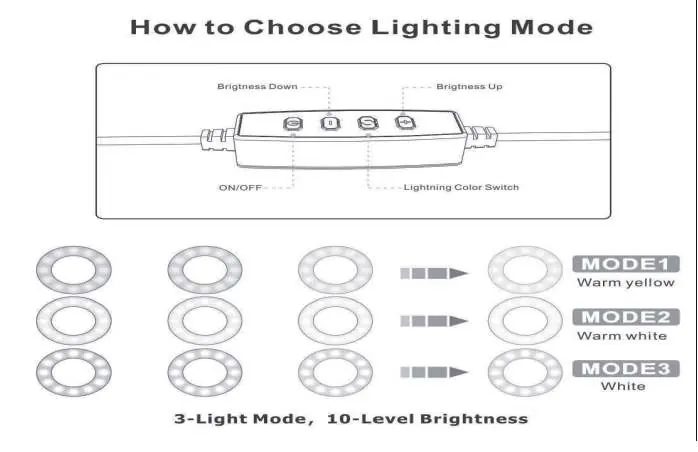

Lighting Modes
Use the controller on the power cable to adjust your lighting:
- ON/OFF: Power the light on or off.
- Brightness Up/Down: Adjust the 10 levels of brightness.
- Lighting Color Switch: Cycle through the 3 available modes: Warm yellow, Warm white, and White.
Care and Maintenance
Clean the product regularly with a soft, dry cloth. Avoid placing the unit near heat sources, direct sunlight, or in humid environments to maintain performance.
Manufacturer information
AGM Mobile
Practical help
Common problems
Remote shutter not connecting
Ensure the battery is installed with the positive side facing up. Search for 'AB Shutter3' in your phone's Bluetooth settings.
Light not turning on
Verify the power source is providing 5V-2A. Check that the USB cable is securely connected and not damaged.
Before use
- Ensure your power source provides 5V-2A.
- Verify the phone width is between 2.3 and 3.6 inches.
- Ensure tripod legs are fully extended and stable.
- Install the battery in the remote shutter.
- Check that the environment is dry and indoors.
Specs in practice
- Color temperature
- Adjustable between 3000K (warm) and 6000K (cool/white).
- Power supply
- Requires a standard USB 5V-2A adapter.
- External diameter
- The ring light measures 255mm across.
Images and diagrams
- Assembly steps illustrate the sequence of attaching the flexible mount, ball head, and tripod to the ring light.
- The controller diagram shows buttons for brightness adjustment and color mode switching.
Model compatibility
- Compatible with most smartphones with a width between 2.3 and 3.6 inches.
- Designed for indoor use only.
