Agri-Fab 45-0587 15-Gallon Tow-Behind Sprayer Parts List
Quick guide and parts list for the Agri-Fab 45-0587 15-Gallon Tow-Behind Spot and Broadcast Sprayer. Includes exploded view diagrams and a complete list of replacement parts for maintenance and repair.
Table of contents
Quick guide from the manual

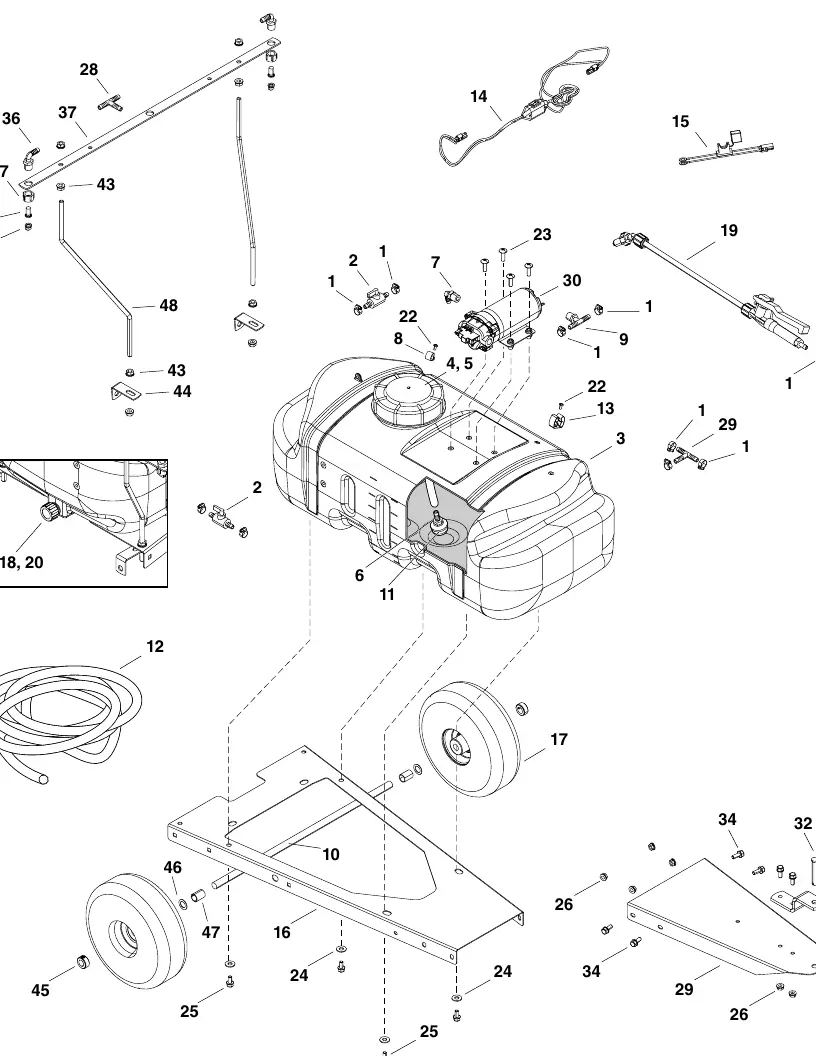

This document provides an exploded view diagram and a comprehensive parts list for the Agri-Fab 45-0587 and 45-0588 tow-behind sprayers. Use this guide to identify replacement parts, verify assembly components, and perform necessary maintenance on your equipment.
Parts Identification
The sprayer consists of several key assemblies, including the tank, pump, boom, and wheel assembly. Refer to the exploded view diagram to locate specific components by their reference numbers. Each reference number corresponds to a specific part number and description found in the parts list table.
Maintenance and Service Parts
Regular maintenance ensures the longevity and performance of your sprayer. Key service parts available for this model include:
- Pump Head Service Kit
- Pump Pressure Switch
- Spray Tip (11008EVS)
- Spray Wand Valve/Handle
- Spray Wand Brass Tip
- Spray Wand Extension
- Fuse (32V 15A ATO/ATC)
Technical Specifications
- Pump: 12V, 100psi, 2.2gpm
- Hose: 3/8 inch ID, 200 psi, black EPDM
- Tank Capacity: 15 Gallon (45-0587) or 25 Gallon (45-0588)
- Tires: 4.10/3.50-4 inch, 10 inch diameter, 5/8 inch roller bearing
Practical help
Common problems
Check the 15A fuse (ST50749) or the pump pressure switch (ST44031).
Inspect spray tips (ST43466) and spray tip screens (ST43016) for clogs or debris.
Verify all hose clamps (ST43652) are tightened securely.
Before use
- Verify all hose clamps are tight.
- Check that the pump is connected to a 12V power source.
- Inspect the tank for any cracks or leaks.
- Ensure spray tips are clean and unobstructed.
- Check tire pressure and wheel assembly security.
