Aigostar 130510BJ1 Wall Light Installation Guide
Quick installation guide for the Aigostar 130510BJ1 wall light, including step-by-step mounting instructions, safety warnings, and professional installation requirements.
Table of contents
Quick guide from the manual
This document provides essential installation steps for the Aigostar 130510BJ1 wall light. Please note that this product must be installed by a qualified professional to ensure safety and proper functionality.

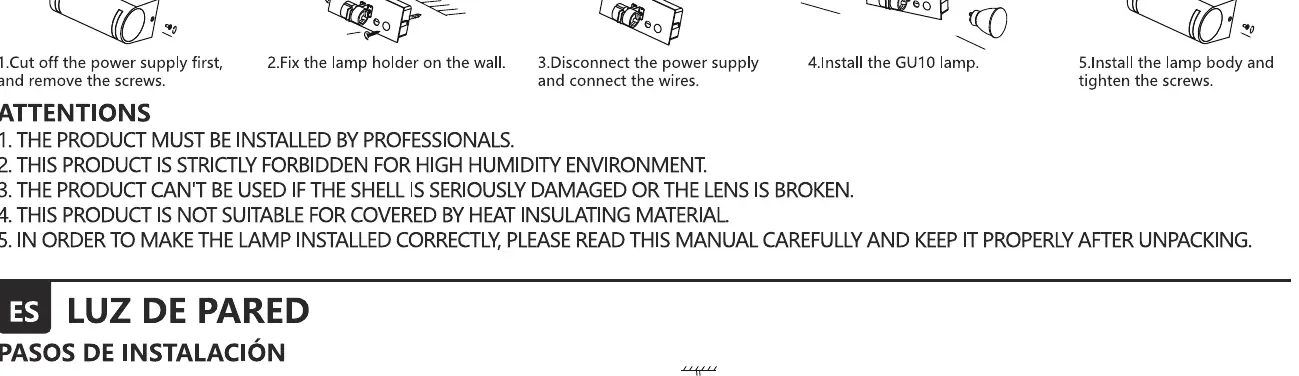

Installation steps
- Turn off the main power supply and remove the screws from the fixture.
- Secure the lamp holder bracket firmly onto the wall.
- Disconnect the power supply and connect the electrical wires to the terminal block.
- Insert and secure the GU10 lamp into the socket.
- Attach the main lamp body to the wall bracket and tighten the screws to secure it in place.
Safety warnings
- Installation must be performed by a professional.
- Do not use this product in high-humidity environments.
- Do not use the lamp if the shell is severely damaged or the lens is broken.
- This product is not suitable for covering with heat-insulating materials.
Manufacturer information
Aigostar
Practical help
Common problems
Lamp does not turn on
Ensure the power supply is connected correctly and the GU10 bulb is properly seated in the socket.
Fixture is loose on the wall
Check that the wall bracket is securely fastened and the main body screws are fully tightened.
Before use
- Ensure the main power supply is switched off before starting installation.
- Verify that the installation environment is not high-humidity.
- Inspect the lamp shell and lens for any cracks or damage.
- Confirm that no heat-insulating material will cover the lamp.
