Alpine 100A GT Electric Scooter Assembly Manual
Quick assembly guide for the Alpine 100A GT electric scooter. Includes step-by-step instructions for unfolding the unit, connecting internal cables, and securing the handlebar assembly.
Table of contents
Manual images
Click an image to enlargeQuick Assembly Guide
This document provides the necessary steps to assemble the Alpine 100A GT electric scooter. Please ensure that an adult performs the assembly process to ensure safety and correct installation.
Safety Warning
The device must be unpacked and assembled by an adult. Do not allow children to perform the assembly.
Assembly Steps
Follow these steps in order to assemble your scooter:

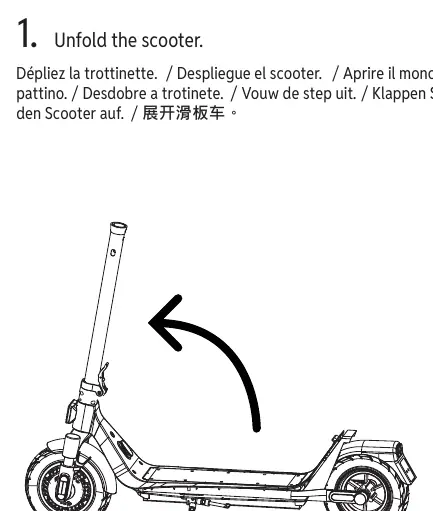

- Unfold the scooter: Release the locking mechanism to unfold the scooter frame into the riding position.
- Connect the cable: Locate the cable inside the tube and connect it to the cable coming out of the scooter head. Ensure the connection is secure and properly seated.

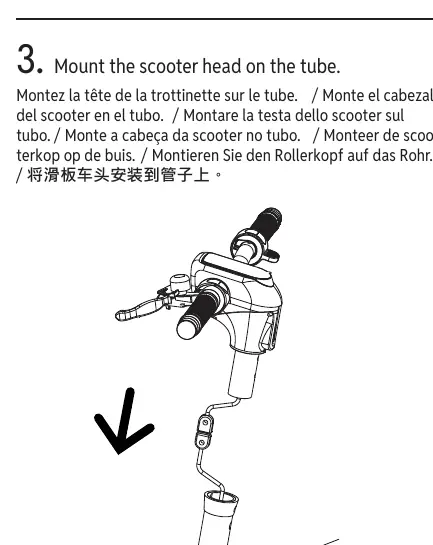

- Mount the scooter head: Carefully place the scooter head onto the top of the tube.
- Secure the assembly: Insert and tighten the 4 screws at the front and rear of the top of the scooter tube to lock the head in place.
Practical help
Before use
- Ensure an adult is performing the assembly.
- Verify all 4 screws are present before starting.
- Check that the internal cable is accessible and undamaged before connecting.
- Ensure the scooter is fully unfolded and locked before riding.
Images and diagrams
- Step 1: Unfolding mechanism operation.
- Step 2: Cable connection point inside the tube.
- Step 3: Positioning the scooter head onto the tube.
- Step 4: Location of the 4 screws to secure the head.
