Amica WA 15EX Washing Machine User Manual

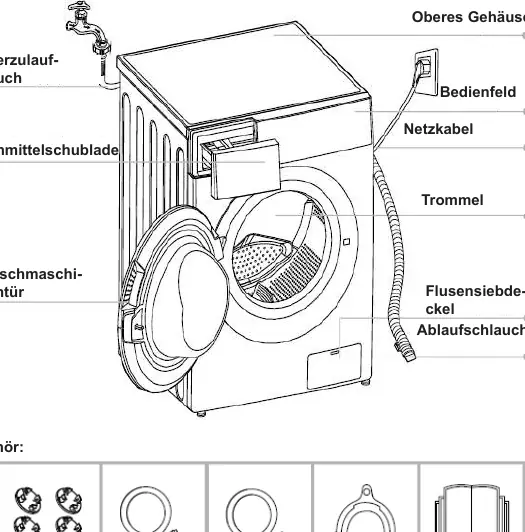

Product Overview

The Amica WA 15EX is a high-quality household washing machine designed for efficiency and modern performance. It features advanced technology to minimize water and energy consumption while ensuring excellent cleaning results. The machine is built with environmentally friendly materials and is designed for long-term, reliable operation.

Safety Instructions

Important: Before operating the machine, read all safety instructions carefully. The appliance is intended for household use only. Keep children under 3 years old away from the machine. Children aged 8 and above may use the device under supervision. Ensure the machine is installed on a stable, level surface and properly grounded. Never use extension cords or power strips. Always remove transport bolts before the first use to prevent damage.

Installation

Proper installation is crucial for safe operation. Remove all four transport bolts before use. The machine must be leveled using the adjustable feet. Connect the water inlet hose to a cold water tap with a pressure between 100 kPa (1 bar) and 1000 kPa (10 bar). Ensure the drain hose is secured at a height between 0.6m and 1m. Perform a calibration cycle as described in the manual to optimize performance.

Operation

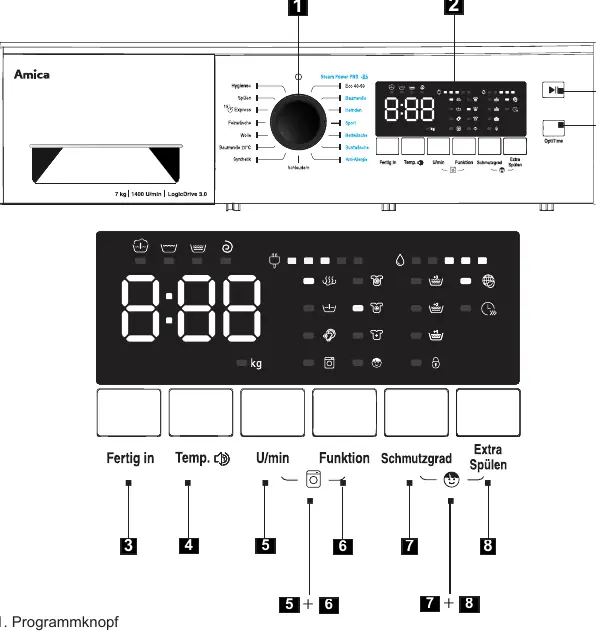

The control panel allows for easy selection of wash programs based on fabric type and soil level. Key features include:

• SteamPower PRO: Uses steam to remove bacteria, allergens, and odors.
• OptiTime: Offers Eco or quick wash modes to save energy or time.
• Child Lock: Prevents accidental changes to settings during operation.
• Delayed Start: Allows scheduling the end time of the wash cycle.

Always sort laundry and check garment labels for washing instructions. Do not exceed the maximum load capacity of 7 kg.

Maintenance

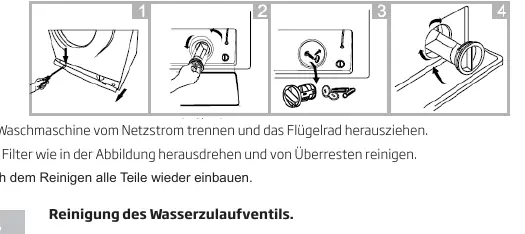

Regular maintenance ensures longevity. Clean the pump filter every 20 wash cycles to prevent drainage issues. Clean the detergent drawer at least once a month. Use only a damp cloth to clean the exterior; avoid harsh chemicals or abrasive sponges. If the machine is not used for an extended period, disconnect it from the power and water supply.

Troubleshooting

If the machine fails to operate, check the power supply, water tap, and door closure. Common error codes include E10 (water supply issues), E12 (overflow), E21 (drainage issues), and E30 (door lock error). If problems persist, contact authorized service personnel.

Disposal

This appliance must not be disposed of with household waste. Follow local regulations for the collection of electrical and electronic equipment to protect the environment and human health.
