Ansell Disco EVO 2 LED Bulkhead Installation Guide

Product Overview

The Ansell Disco EVO 2 is a high-quality LED bulkhead designed for professional lighting applications. This fixture is built to meet international electrical standards and provides reliable illumination. It features an IP65 rating, making it suitable for various environments where protection against dust and water ingress is required.

Safety and Installation

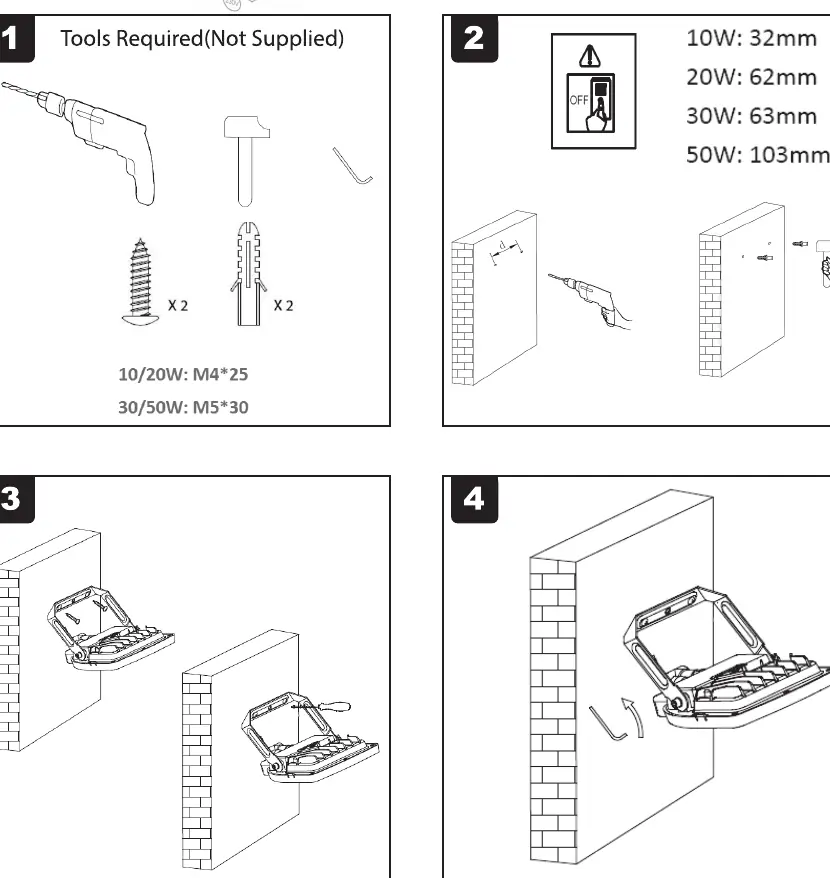

Installation must be performed by a qualified electrician in accordance with the latest IEC standards or equivalent national regulations. Always ensure the mains power is switched off before starting any installation or maintenance work. The luminaire is designed for wall mounting. Ensure the mounting surface is suitable and use the appropriate tools as specified in the installation diagrams. The light source contained in this luminaire must only be replaced by the manufacturer, their service agent, or a similarly qualified person. The external flexible cable cannot be replaced; if damaged, the entire luminaire must be destroyed.

Sensor Configuration

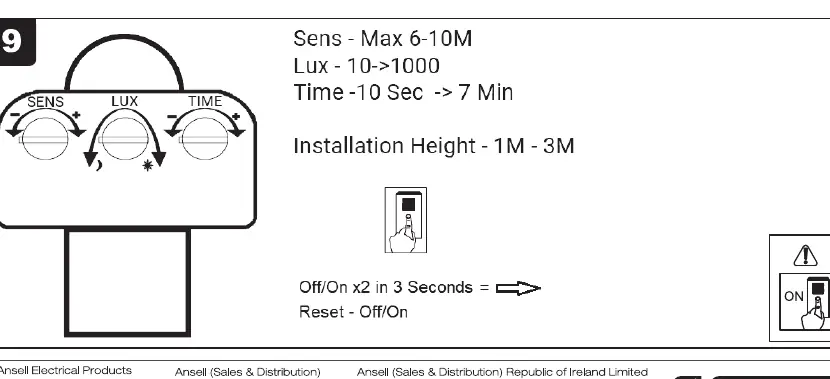

For models equipped with a PIR sensor, the unit offers adjustable settings to optimize performance based on environmental needs:

• Sensitivity (Sens): Adjustable range from 6 to 10 meters.
• Lux Level (Lux): Adjustable from 10 to 1000 lux to control activation based on ambient light.
• Time Delay (Time): Adjustable duration from 10 seconds to 7 minutes.
• Installation Height: Recommended mounting height is between 1 and 3 meters.

The sensor also supports a manual override function: toggling the power off and on twice within 3 seconds will reset the device to its default state.

Maintenance and Warranty

The warranty is void if the product is installed incorrectly, subjected to adverse environmental conditions, or modified by unauthorized personnel. Regular maintenance should only be performed while the power is disconnected. If the product fails during the warranty period, contact your local representative for assistance. Do not attempt to repair the internal components yourself, as this may compromise safety and void the warranty.
