Anslut 16W LED Round Ceiling Lamp

Product Description

The Anslut 16W LED ceiling lamp is a dimmable lighting fixture designed for indoor use. It features a modern, round design and is built with double insulation (safety class II), meaning it does not require earthing. The light source and control gear are non-replaceable; when the light source reaches the end of its lifespan, the entire unit must be replaced.

Safety Instructions

Warning: Failure to follow these instructions may result in death or serious injury. Always disconnect the power supply before installation, connection, or maintenance. Do not install the product near heat sources or in damp conditions. Do not modify the product or attempt to repair it if damaged; contact an authorized service center instead. Keep the product away from children and individuals unfamiliar with its operation.

Installation

Warning: Turn off the power supply before starting the installation. Do not remove the rubber gaskets on the installation plate.

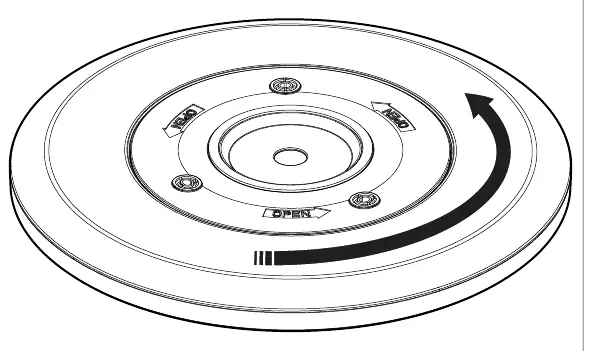

• Remove the cover.
• Unhook the safety cord.
• Remove the cable connector.
• Measure and drill 3 holes in the ceiling. Thread the terminal cable through the center hole of the bracket and screw the bracket into place.
• Attach the safety cord.

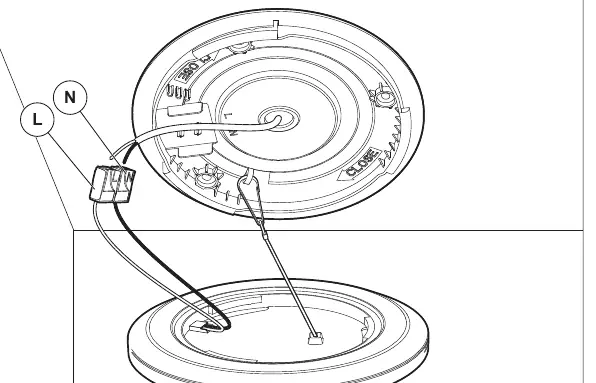

• Connect the L and N wires to the terminal cable.
• Install the cable connector into the bracket.
• Attach the cover.

Maintenance and Storage

Before cleaning, turn off the power supply and allow the lamp to cool down. Clean the product using a dry or damp cloth. Do not use detergents, alcohol, solvents, or similar substances, as these may damage the surface. When not in use, store the product in a cool, dry place.

Technical Data

• Voltage: 230 V AC ~ 50 Hz
• Power: 18 W
• Luminous flux: 1500 lm
• Colour temperature: 3000 K
• Protection rating: IP44
• Lifetime: 20,000 h
• Dimmable: Yes
• Dimensions: Ø29 x 2.3 cm
• Weight: 610 g

Disposal

Dispose of the product in accordance with local regulations. Do not burn the product. This item should be recycled as electrical waste.
