Apollo 12K Air Conditioner Dimensions Guide
Quick reference guide for the physical dimensions of the Apollo 12K BTU air conditioner unit, including indoor and outdoor unit measurements.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides the essential physical dimensions for the Apollo 12K BTU air conditioner system. Use these measurements to ensure proper clearance and space allocation for both the indoor and outdoor units before beginning installation.
Indoor unit dimensions

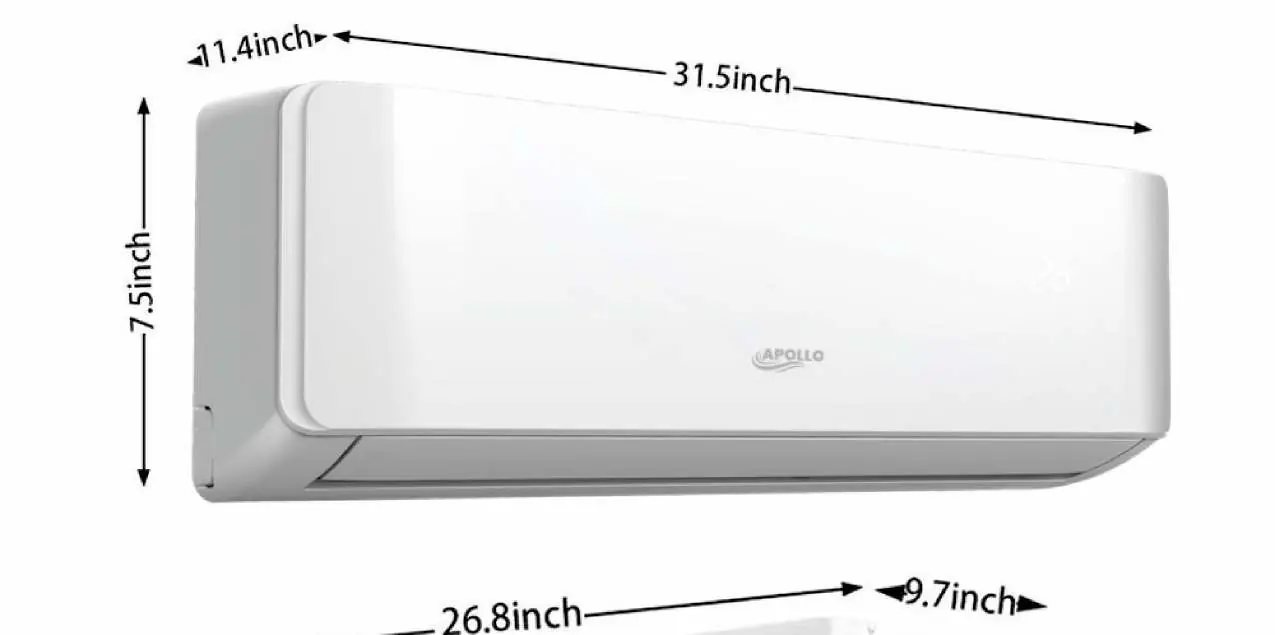

The indoor air handling unit features the following physical dimensions:
- Width: 31.5 inches
- Depth: 11.4 inches
- Height: 7.5 inches
Outdoor unit dimensions

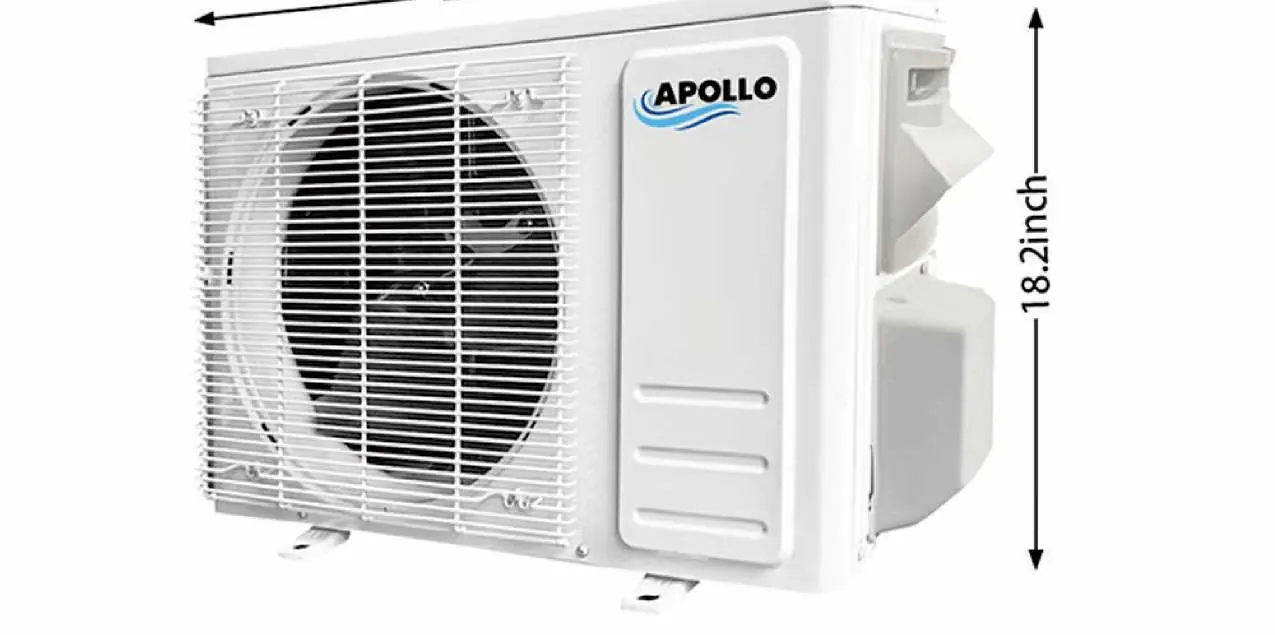

The outdoor compressor unit features the following physical dimensions:
- Width: 26.8 inches
- Depth: 9.7 inches
- Height: 18.2 inches
Practical help
Before use
- Measure the intended installation area against the provided dimensions.
- Ensure the wall surface can support the weight and size of the indoor unit.
- Verify that the outdoor unit location allows for proper airflow and clearance based on the 26.8 x 9.7 x 18.2 inch footprint.
Specs in practice
- Indoor Unit Width (31.5 inches)
- Total horizontal space required for mounting the indoor unit.
- Outdoor Unit Height (18.2 inches)
- Vertical clearance required for the outdoor compressor unit.
