This document provides installation instructions for the Artika Nuvo 20 LED Vanity Light. Before beginning, ensure the main electrical supply is turned off at the circuit breaker. This product is intended for indoor, residential use only. We recommend that this product be installed by a certified electrician.

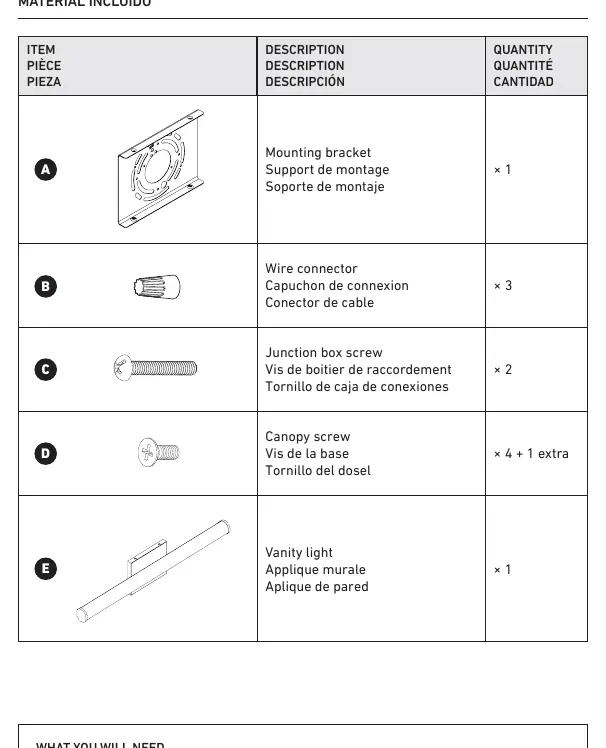

Included hardware
- Mounting bracket (x1)
- Wire connectors (x3)
- Junction box screws (x2)
- Canopy screws (x4 + 1 extra)
- Vanity light fixture (x1)
Installation steps
1. Mounting bracket installation
Secure the mounting bracket to the junction box using the provided junction box screws.

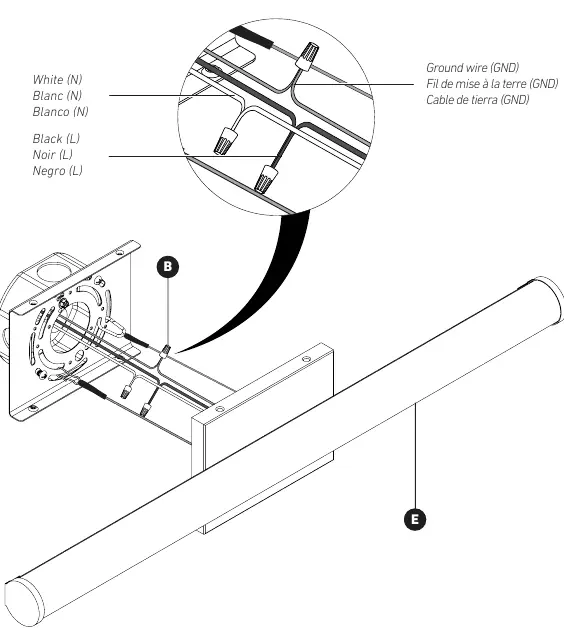

2. Wiring connection
Connect the wires using the provided wire connectors. Ensure the following connections are made:
- Ground wire (GND)
- White wire (Neutral)
- Black wire (Live)
3. Final installation
Attach the vanity light fixture to the mounting bracket using the canopy screws.
Safety and warnings
If using a dimmer, it must be LED compatible. Failure to follow installation and/or operating instructions voids the warranty.
Warranty and support
Artika For Living Inc. offers a five-year limited warranty for manufacturing defects for residential use. For support, contact Artika at 1-866-661-9606 or [email protected].
Manufacturer information
Artika
Practical help
Common problems
Ensure the dimmer switch being used is LED compatible.
Before use
- Turn off the main electrical supply at the circuit breaker.
- Verify you have a screwdriver and a level.
- Ensure the installation location is indoors.
- Confirm the junction box is ready for mounting.
