Installation Guide for Askar 120APO EAF
Step-by-step installation guide for mounting the Electronic Automatic Focuser (EAF) on the Askar 120APO telescope. Includes instructions for bracket attachment, coupling, and motor securing.
Manual images
Click an image to enlargeQuick Installation Guide
This guide outlines the procedure for installing the Electronic Automatic Focuser (EAF) onto the Askar 120APO telescope. Ensure you have a 2mm wrench available before beginning the installation.
Installation Steps

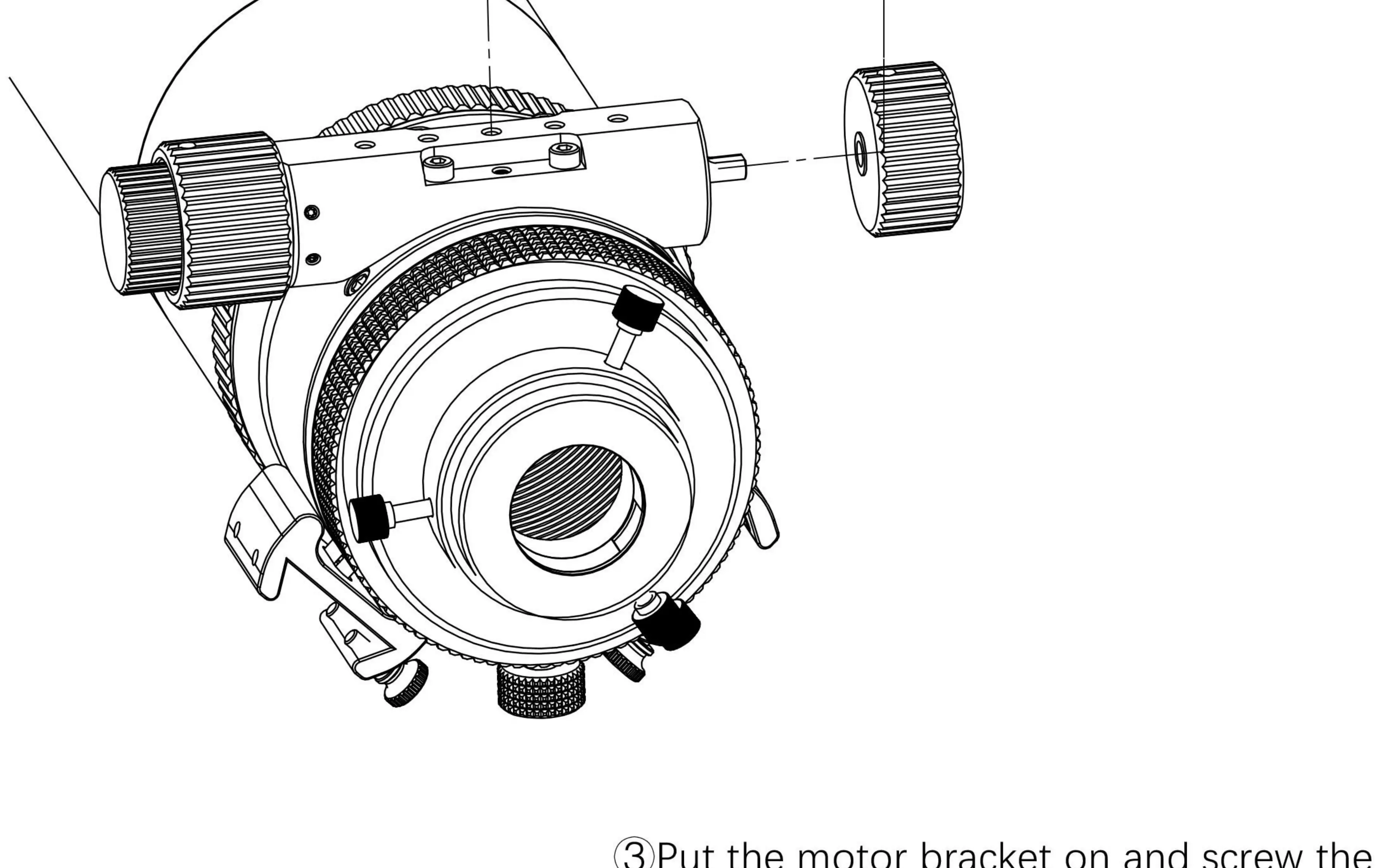

- Remove the thumb screw: Locate and remove the thumb screw from the telescope focuser.
- Remove the coarse adjustment knob: Use a 2mm wrench to remove the coarse adjustment knob from the focuser shaft.

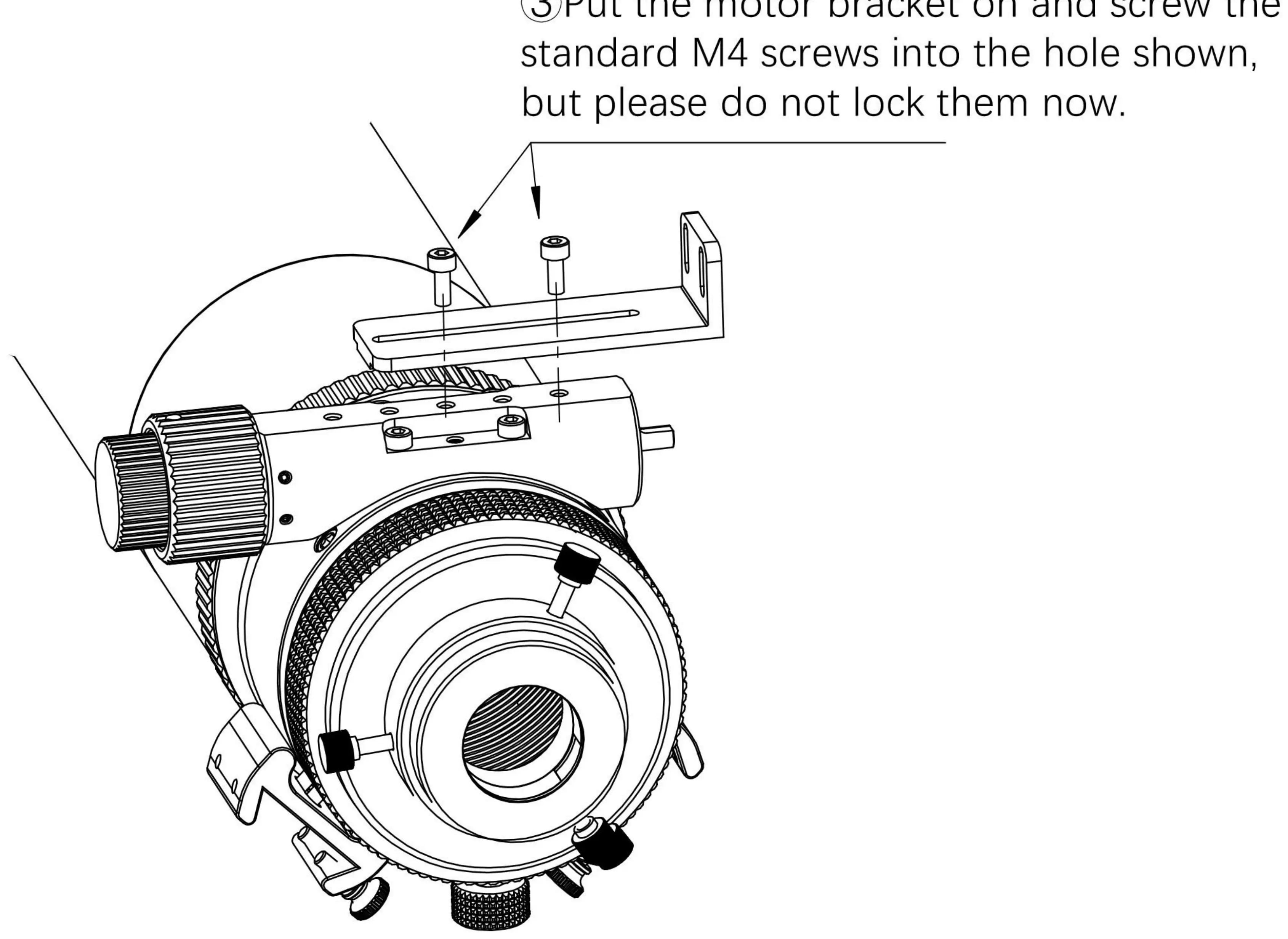

- Attach the motor bracket: Place the motor bracket onto the focuser and insert the standard M4 screws into the holes shown. Do not fully tighten these screws at this stage to allow for adjustment.

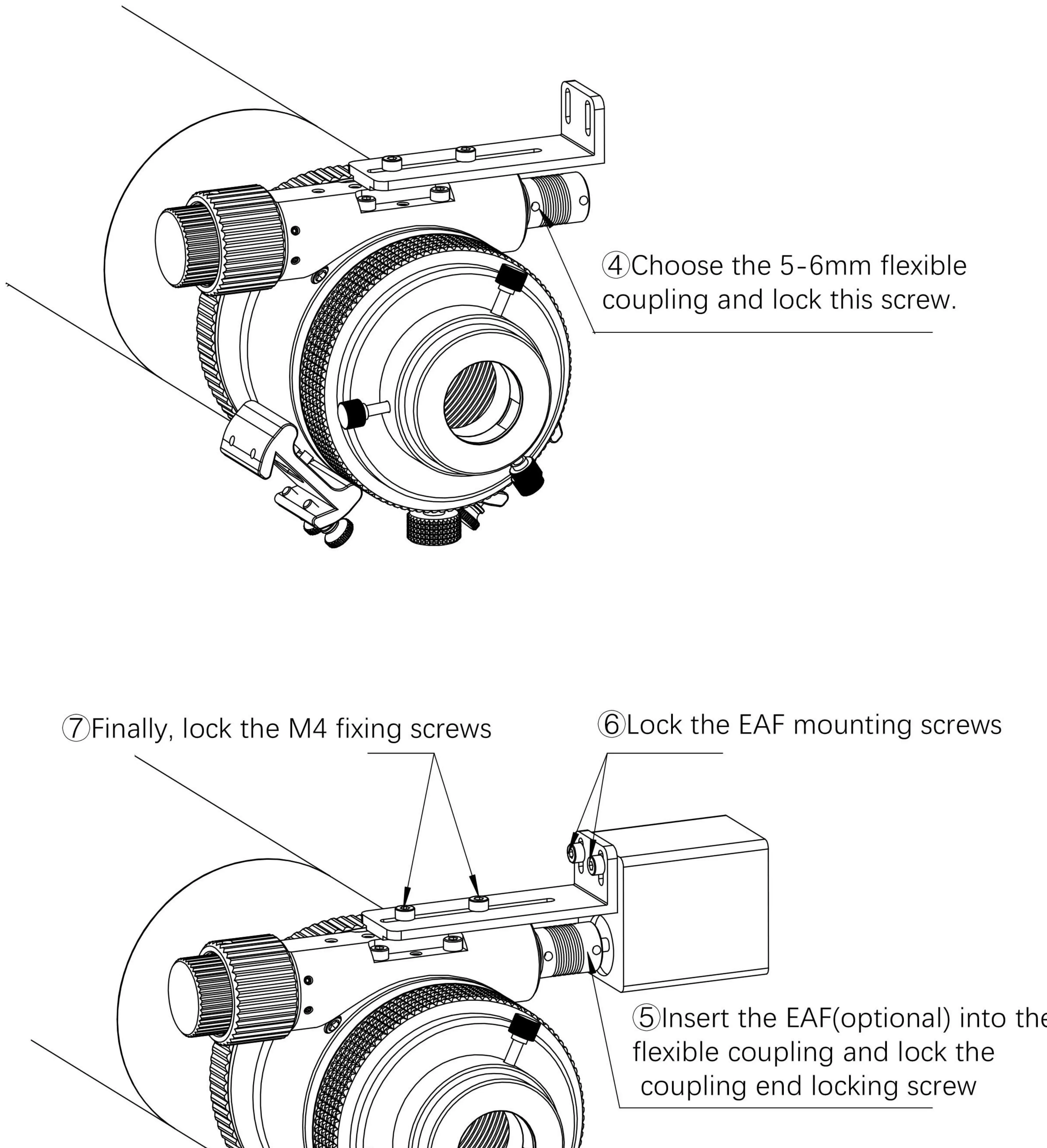

- Install the flexible coupling: Choose the 5-6mm flexible coupling and secure it by tightening the coupling screw.
- Mount the EAF: Insert the EAF motor into the flexible coupling and tighten the coupling end locking screw to secure the connection.
- Secure the EAF: Tighten the EAF mounting screws to fix the motor to the bracket.
- Finalize installation: Fully tighten the M4 fixing screws to lock the bracket firmly in place.
Practical help
Common problems
Bracket misalignment
Do not fully lock the M4 screws in step 3 until the EAF is properly aligned with the coupling.
Coupling slippage
Ensure the coupling end locking screw is tightened securely onto the EAF shaft.
Before use
- Askar 120APO telescope
- EAF motor unit
- M4 screws (included)
- 5-6mm flexible coupling
