Bartscher 10L Hot Water Dispenser: Exploded View and Parts List
Comprehensive exploded view diagram and official parts list for the Bartscher 10L Hot Water Dispenser, including technical specifications for thermostats and components.
Table of contents
Product Overview
The Bartscher 10L Hot Water Dispenser is a professional-grade appliance designed for efficient water heating and dispensing. This document provides an exploded view diagram and a detailed parts list to assist users and technicians in identifying components for maintenance, repair, or replacement. The unit is designed for durability and ease of use in commercial environments.
Key Components and Structure
The dispenser consists of several critical assemblies that ensure safe and reliable operation. The main housing contains the heating element and internal wiring, while the lid with handle provides secure access to the water container. A dedicated drain tap allows for controlled dispensing of hot water. The unit also features a visual fill level indicator, which helps users monitor water levels to prevent overfilling or running the unit dry.
Technical Specifications and Safety
Safety is a priority in the design of the Bartscher 10L dispenser. The unit is equipped with a primary thermostat that regulates water temperature between 30 and 105 degrees Celsius. Additionally, a safety thermostat set to 135 degrees Celsius provides protection against overheating, automatically cutting power if temperatures exceed safe limits. Indicator lights (green and red) provide visual feedback on the operational status of the heating element and power supply.
Maintenance and Parts Identification
Regular maintenance involves checking the integrity of seals, such as the silicone ring and the sealing for the fill level indicator. The exploded view diagram clearly illustrates the positioning of the heating element, the thermostat knob, and the electrical connections. When ordering replacement parts, please refer to the specific item numbers provided in the parts list. Note that certain components, such as the fill level indicator, may have different versions depending on the production date of your unit. Always ensure the appliance is disconnected from the power source before attempting any inspection or replacement of internal parts.
Manufacturer information
Bartscher GmbH
Practical help
Common problems
Unit not heating
Check the power cord connection and verify if the safety thermostat has tripped.
Leaking from the tap
Inspect the drain tap assembly and the connecting nut for loose fittings or damaged seals.
Inaccurate temperature control
Check the thermostat knob and the internal thermostat component for wear or malfunction.
Before use
- Ensure the unit is placed on a stable, heat-resistant surface.
- Check that the drain tap is securely closed.
- Verify the power cord is undamaged and properly connected.
- Ensure the lid is correctly positioned on the housing.
- Check the fill level indicator for any signs of leakage.
Specs in practice
- Thermostat range
- Adjustable temperature control between 30 and 105 degrees Celsius.
- Safety thermostat
- Thermal cutoff switch that activates at 135 degrees Celsius to prevent overheating.
- Indicator lights
- Visual status indicators for power and heating cycles.
Images and diagrams

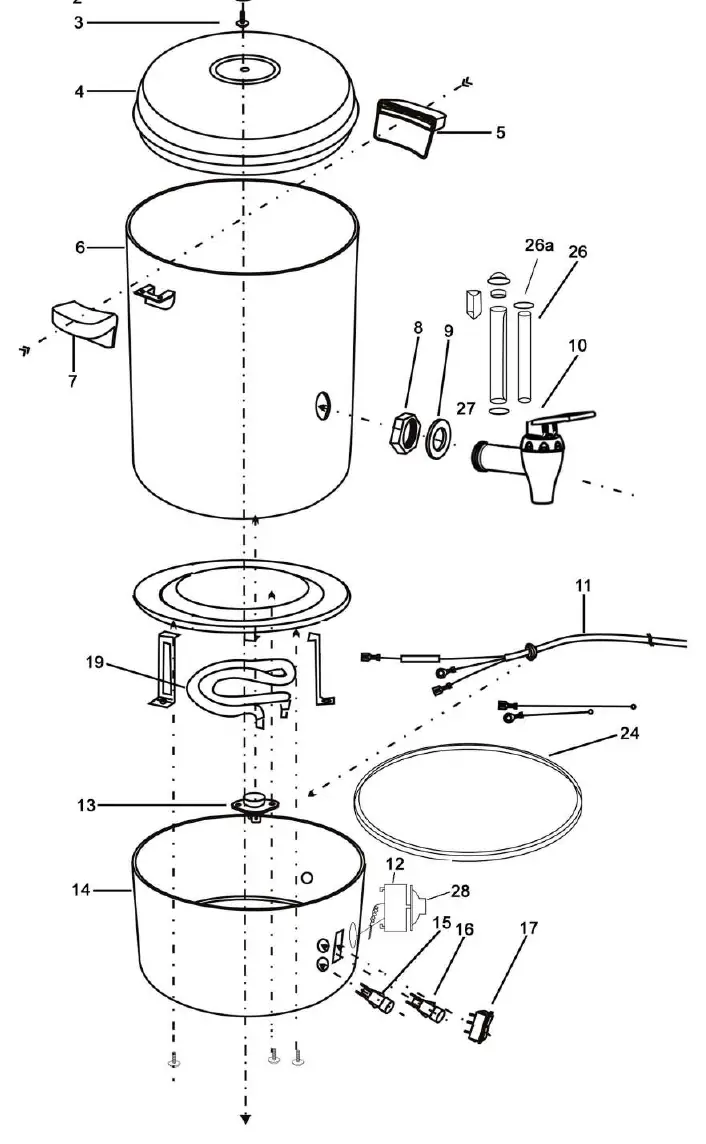

- The exploded view shows the vertical assembly of the housing, lid, and base.
- The drain tap assembly is located on the side of the housing.
- Electrical components including the thermostat and heating element are housed in the base section.
- The fill level indicator is mounted externally for easy monitoring.
Model compatibility
- Parts are specific to Bartscher 10L models (200054, 200054UK, 200131).
- Fill level indicators vary by production date (pre/post 12/2017).
