BEA 10UBRACKETUL Glass Door Mounting Kit
Quick installation guide for the BEA 10UBRACKETUL glass door mounting kit. Includes assembly steps, dimensions, and compliance requirements for maglock installations.
Table of contents
Quick Installation Guide
This document provides instructions for installing the BEA 10UBRACKETUL glass door mounting kit designed for magnetic locks (MAGLOCKS). Follow these steps to ensure a secure and compliant installation.
Installation Steps

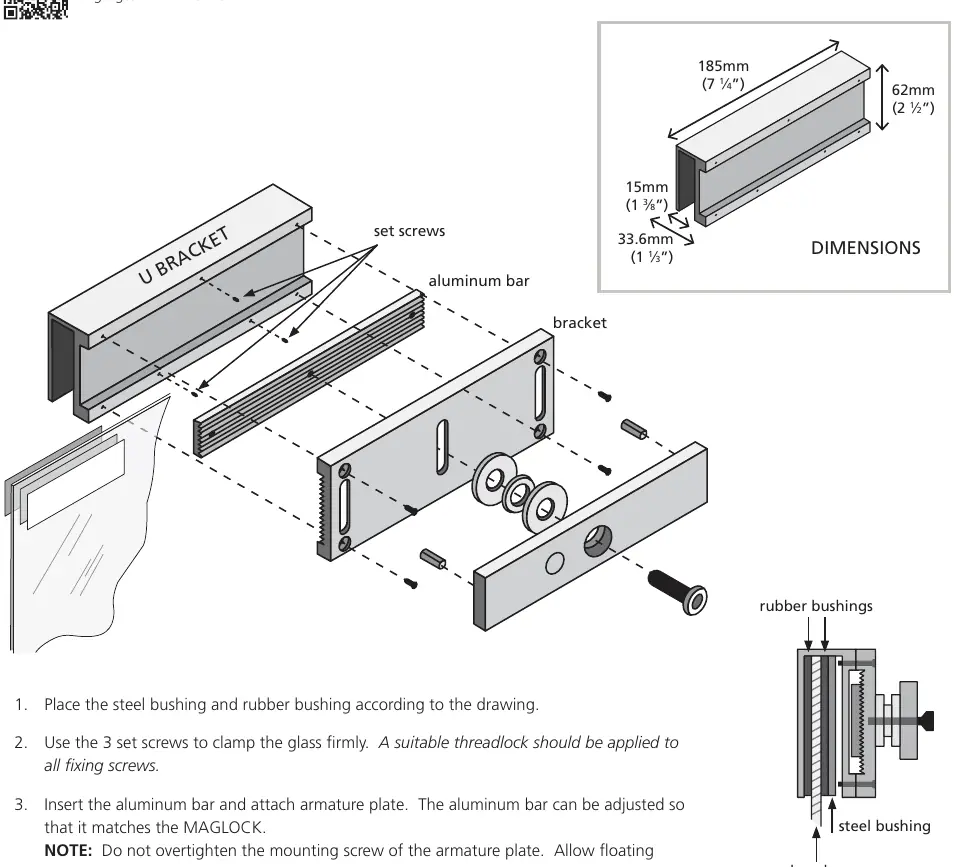

- Place the steel bushing and rubber bushing according to the drawing.
- Use the 3 set screws to clamp the glass firmly. A suitable threadlock should be applied to all fixing screws.
- Insert the aluminum bar and attach the armature plate. The aluminum bar can be adjusted to match the MAGLOCK.
Note: Do not overtighten the mounting screw of the armature plate. Allow floating movement for maximum holding force.
Dimensions
The mounting kit dimensions are 185mm in length, 62mm in height, and 33.6mm in depth.
Compliance and Safety
BEA Inc. recommends that installation and service technicians be AAADM-certified for pedestrian doors and IDA-certified for doors/gates. Installers are responsible for performing a risk assessment and ensuring the system complies with local, national, and international regulations (e.g., ANSI 156.10, ANSI 156.19, UL294, UL325).
