Installation Kit Manual for Beko MOK 20232 X Microwave Oven
Quick guide for installing the Beko MOK 20232 X microwave oven. Includes cabinet dimensions, mounting steps, and component list.
Quick answers from the manual
Quick answer
- This manual provides step-by-step instructions for installing the Beko MOK 20232 X microwave oven into a kitchen cabinet using the included installation kit. p. 4, 5, 6, 7
Key actions
- Fix brackets A to the cabinet bottom. p. 6
- Fix brackets B to the cabinet. p. 7
- Install the oven into the cabinet. p. 7
- Fix the trim kit to the cabinet. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Cabinet Cutout Width | 560mm | Required width for installation | p. 5 |
| Cabinet Cutout Height | 362mm | Required height for installation | p. 5 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Kit Parts p. 4
- Cabinet Dimensions p. 5
- Installation Steps p. 6, 7, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for installing the Beko MOK 20232 X microwave oven using the provided installation kit. Follow these steps to ensure proper mounting and safety.
Parts list
- Trim kit
- Brackets A (2x)
- Brackets B (4x)
- Screws (16x)
Cabinet requirements
Ensure the cabinet meets the following dimensions for proper installation:
- Width: 560mm
- Height: 362mm
- Depth: 320mm minimum
Installation steps

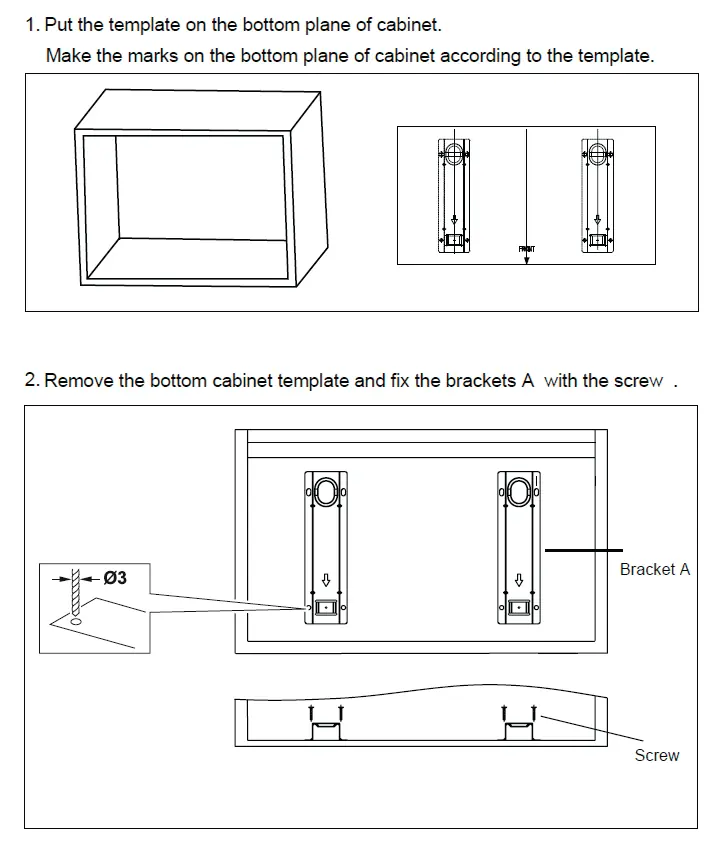

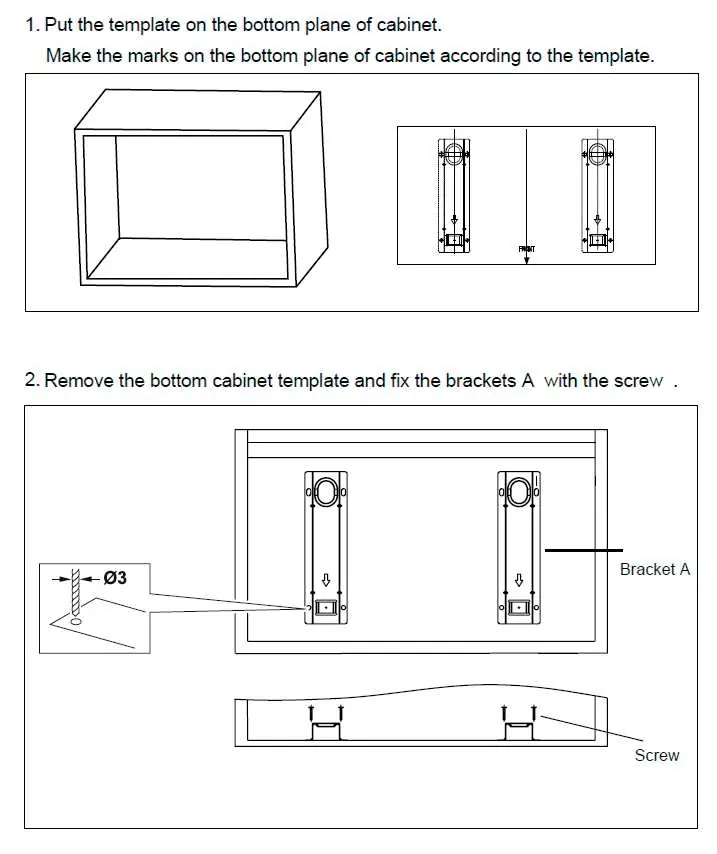

- Place the template on the bottom plane of the cabinet and mark the positions according to the template.
- Remove the template and fix Brackets A to the cabinet bottom using the provided screws.
- Fix Brackets B to the cabinet sides.
- Install the oven into the cabinet.

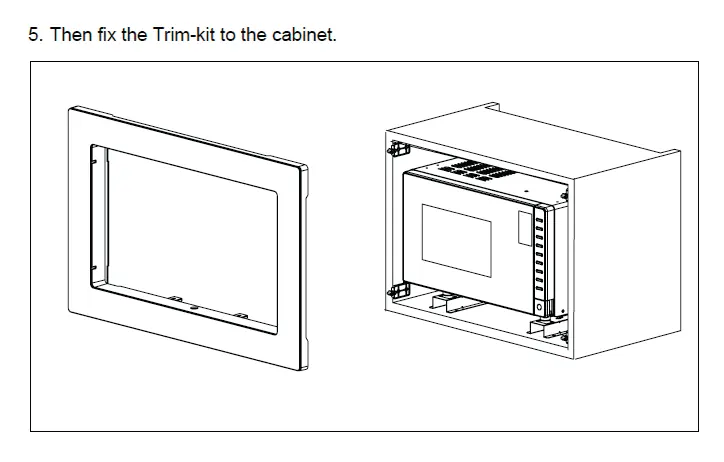

- Fix the trim kit to the cabinet.
Practical help
Before use
- Check cabinet dimensions (560mm width, 362mm height, 320mm depth)
- Ensure all parts (brackets, screws, trim kit) are present
Specs in practice
- Cabinet Width
- 560mm
- Cabinet Height
- 362mm
- Cabinet Depth
- 320mm minimum
