Assembly Instructions for Bekrvio 08FTC0085 Counter/Bar Stool

Quick assembly guide for the Bekrvio 08FTC0085 counter/bar stool. Includes component lists, hardware requirements, and step-by-step installation instructions.

Table of contents

Manual images

Click an image to enlarge
Steps 1 and 2: Assembling the base and pedal. Page 2 Step 3: Attaching the turntable. Page 2 Step 4: Attaching the seat. Page 2

Quick Assembly Guide

This guide provides instructions for assembling the Bekrvio 08FTC0085 counter/bar stool. Ensure all components and hardware are present before beginning assembly. Use the provided Allen key for all bolt connections. Do not fully tighten bolts until all are in place to allow for alignment adjustments.

Component List

  • A: Back
  • B: Leg (Cross-base)
  • C: Leg (4 pieces)
  • D: Turntable
  • E: Pedal

Hardware List

  • 1: Bolts M6x25mm (5 pcs)
  • 2: Bolts M6x16mm (15 pcs)
  • 3: Washer Ø6x15x1.5mm (17 pcs)
  • 4: Allonkey
  • 5: Fool (5 pcs)
  • 6: Washer (3 pcs)
  • 7: Bolts M6x28mm (3 pcs)

Assembly Steps

Steps 1 and 2: Assembling the base and pedal.
Steps 1 and 2: Assembling the base and pedal.

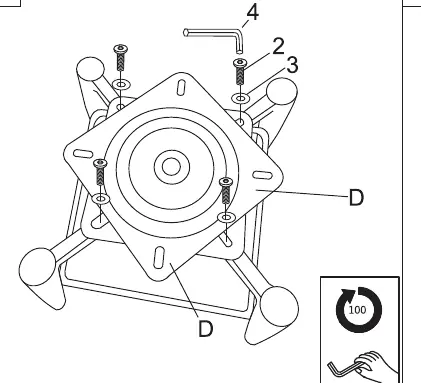

Step 3: Attaching the turntable.
Step 3: Attaching the turntable.
Step 4: Attaching the seat.
Step 4: Attaching the seat.
  1. Leg Assembly: Attach the four legs (C) to the cross-base (B) using bolts (2) and washers (3).
  2. Pedal Installation: Attach the pedal (E) to the legs (C) using bolts (1).
  3. Turntable Installation: Attach the turntable (D) to the top of the leg assembly using bolts (2) and washers (3).
  4. Seat Attachment: Attach the seat/back (A) to the turntable assembly using bolts (7), washers (3), and washers (6).
  5. Final Check: Ensure all screws are tightened securely. Adjust the leveling feet if the stool is unstable.

Manufacturer information

Bekrvio

Brand profile
Manufacturer website https://bekrvio.com Support https://bekrvio.com/pages/contact-us

Practical help

Common problems

Stool is wobbly or unstable

Ensure all screws are fully tightened. Check the leveling feet at the bottom of the legs and adjust as necessary.

Difficulty inserting bolts

Do not fully tighten bolts until all are in place to allow for alignment adjustments.

Before use

  • Verify all components (A, B, C, D, E) are present.
  • Verify all hardware (1-7) is present.
  • Clear a clean, soft area for assembly to prevent scratching.
  • Ensure the Allen key (4) is available.
