Installation Guide for Bell Lighting Arial Endure 70030 LED Bulkhead
Quick installation guide for the Bell Lighting Arial Endure 70030 LED Bulkhead. Includes wiring instructions, technical specifications, and safety requirements for professional installation.
Quick answers from the manual
Quick answer
- The Arial Endure 70030 is an IP65 rated LED bulkhead. Installation must be performed by a qualified electrician in accordance with BS7671:2018 regulations. p. 1
Key actions
- Switch off mains supply before installing. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230-240V | Operating voltage | p. 1 |
| Power | 22W-31W | Power consumption | p. 1 |
| IP Rating | IP65 | Ingress protection | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Quick guide from the manual
This document provides installation instructions for the Bell Lighting Arial Endure 70030 LED bulkhead. It is essential that this equipment is installed by a competent electrician to ensure compliance with current IEE wiring regulations (BS7671:2018) and local building control.
Installation
The installation process involves mounting the fixture and connecting the electrical supply. Always switch off the mains supply before beginning any installation work.
- Ensure the ambient room temperature does not exceed 35°C.
- Provide adequate free air ventilation around the fitting.

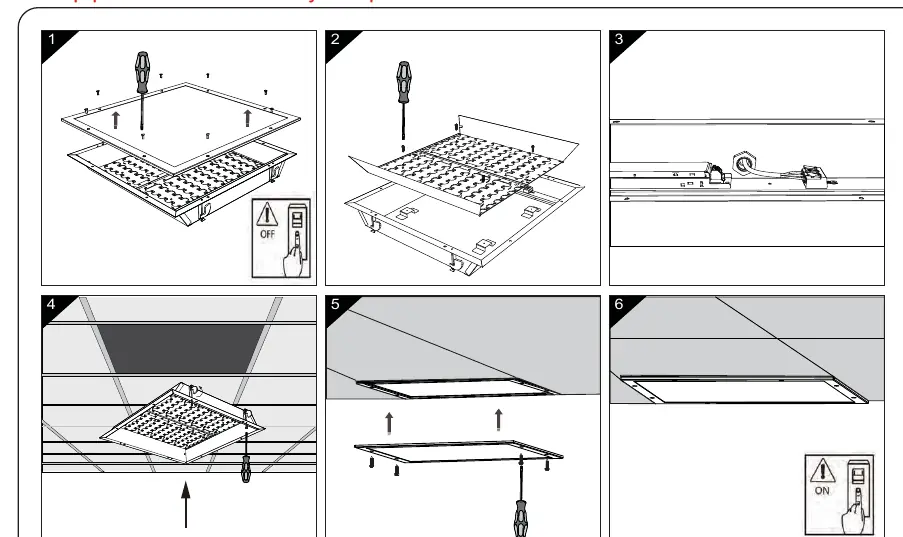

- Follow the 6-step installation procedure provided in the diagram, ensuring all wiring is secure and the unit is properly mounted.
Technical Specifications
- Voltage: 230-240V, 50Hz
- Power Consumption: 22W-31W
- Ingress Protection: IP65
- Insulation Class: I
- Dimensions: 598mm x 598mm x 80mm
Safety and Disposal
This product may contain substances hazardous to the environment. Electrical and electronic equipment must never be disposed of with general household waste. Please separate for correct treatment and recovery. Recycle packaging where possible.
Manufacturer information
BELL Lighting
Practical help
Common problems
Verify that the mains supply is switched on and that all wiring connections are secure and compliant with BS7671:2018.
Ensure the ambient room temperature does not exceed 35°C and that there is adequate free air ventilation around the fitting.
Before use
- Ensure installation is performed by a qualified electrician.
- Verify compliance with IEE wiring regulations BS7671:2018.
- Switch off mains supply before starting.
- Check that ambient temperature is below 35°C.
- Ensure adequate ventilation space around the unit.
