Bissell QuickWash 1970E Carpet Cleaner Parts Diagram
Parts diagram and component identification guide for the Bissell QuickWash carpet cleaner (models 1970E, 1970F, 1970G, 1970J). Use this document to identify replacement parts for your unit.
Table of contents
Important information from the manual
This document serves as an official parts identification guide for the Bissell QuickWash carpet cleaner. It provides an exploded view of the unit, allowing users to identify specific components by number for the purpose of repair, maintenance, or ordering replacement parts.
Parts Diagram Overview

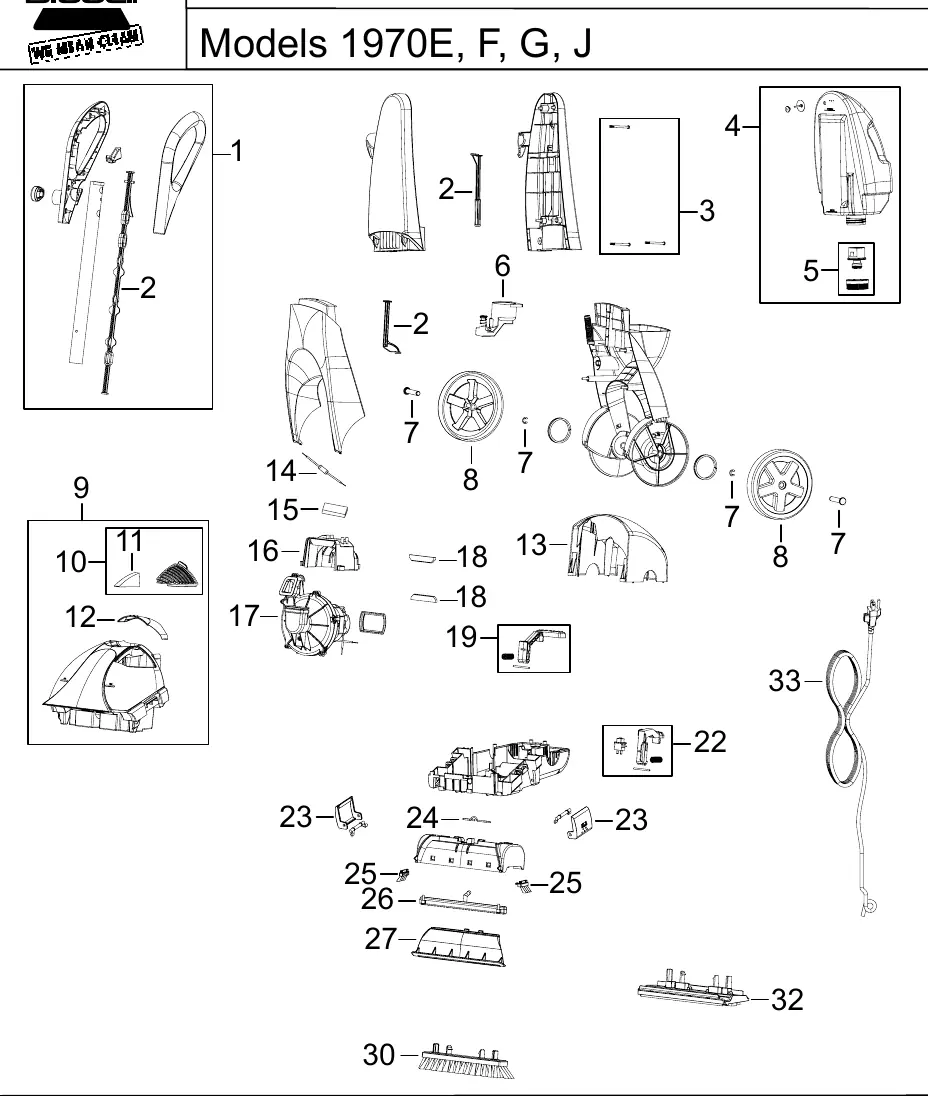

The document contains a detailed exploded view diagram of the Bissell QuickWash carpet cleaner. It illustrates the assembly of the main housing, handle, wheels, and internal cleaning components. Each part is numbered to correspond with manufacturer part lists, which are essential for sourcing correct replacements for models 1970E, 1970F, 1970G, and 1970J.
Contact Information
For further assistance regarding parts or service, you may contact Bissell Homecare, Inc. at their headquarters in Grand Rapids, Michigan, USA. Additional support information is available at www.bissell.com.
Official resources from the manual
Manufacturer information
Bissell Inc.
Practical help
Images and diagrams
- The document provides an exploded view of the Bissell QuickWash carpet cleaner, identifying components by number for repair or replacement purposes.
- The diagram covers the assembly of the handle, main body, wheels, and cleaning mechanism.
Model compatibility
- This parts diagram is applicable to Bissell QuickWash models 1970E, 1970F, 1970G, and 1970J.
