Quick guide from the manual
This document provides essential information for the operation and maintenance of the Bosch EasyDrill and EasyImpact 18V-40 cordless drills. It is intended to help users identify key components and understand basic handling procedures to ensure safe and effective use of the power tool.

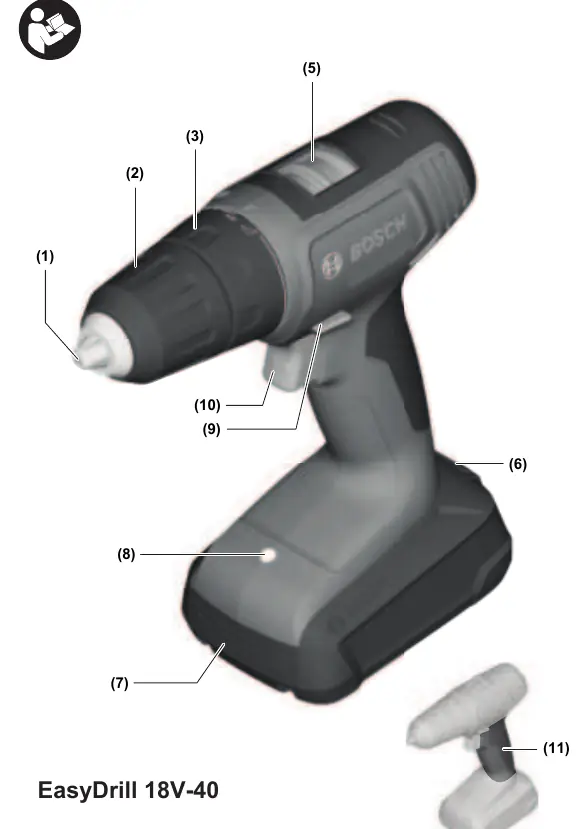

Device components
The following components are identified on the device:
- (1) Keyless chuck
- (2) Torque preselection ring
- (3) Gear selector switch
- (5) Directional switch (forward/reverse)
- (6) Battery release button
- (7) Rechargeable battery
- (8) Battery charge indicator
- (9) On/Off switch
- (10) Work light
- (11) Handle (insulated gripping surface)
Safety and operation
Always ensure the battery is removed before performing any maintenance or changing accessories. Use only original Bosch batteries and chargers compatible with the 18V system. Ensure the work area is well-lit and free of obstructions. When operating, maintain a firm grip on the handle and ensure the directional switch is set correctly for the intended task (drilling or driving screws).
Manufacturer information
Bosch
Practical help
Common problems
Check if the battery is fully charged and correctly inserted into the tool base.
Ensure the battery is properly seated and the contacts are clean.
Before use
- Ensure the battery is fully charged.
- Check that the correct bit is securely fastened in the keyless chuck.
- Verify the direction of rotation switch is set to the desired position.
- Select the appropriate torque setting for the material.
- Ensure the work area is clear and safe.
