Instruction Manual for Bosch EasyMower 18V-32-150 Cordless Lawnmower
Quick guide for the Bosch EasyMower 18V-32-150 and 18V-32-200 cordless lawnmowers. Includes assembly, operation, battery maintenance, and troubleshooting steps.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential safety, assembly, and operating instructions for the Bosch EasyMower 18V-32-150 and 18V-32-200. Always remove the battery and isolator key before performing any maintenance, cleaning, or when leaving the machine unattended.
Assembly and Operation
The mower requires assembly of the handle and the grassbox. Ensure the cutting height is set to the same position on all four wheels for optimal performance. To operate, insert the battery, insert the isolator key, and use the switch on the handle.
Safety Precautions
- Always wear sturdy, non-slip footwear and long trousers.
- Check the area for wildlife, pets, and foreign objects (stones, sticks, wires) before mowing.
- Do not operate in wet grass or bad weather, especially if there is a risk of lightning.
- Keep hands and feet away from rotating blades.
- Wait for all components to stop completely before touching the machine.
Battery Maintenance
Use only the specified Bosch battery charger. Store the battery separately from the machine in a temperature range between -20 °C and 50 °C. Keep the battery away from metal objects like coins or paper clips to prevent short-circuiting.
Maintenance and Cleaning
Always wear gardening gloves when handling the blades. Keep the product clean and free of residue. Never spray or immerse the machine in water. Regularly check the grass bag for wear and ensure all nuts and bolts are tight.
Troubleshooting
If the motor refuses to start, check if the battery is charged, the isolator key is fully inserted, or if the motor protector has activated due to long grass. If the machine leaves a ragged finish, increase the cutting height or replace the blunt blade.
Manufacturer information
Bosch
Practical help
Common problems
Check if the battery is charged, the isolator key is inserted correctly, or if the motor protector has activated due to grass being too long.
Increase the cutting height or replace the blunt cutting blade.
Check if the blade nut/bolt is loose (tighten to 17 Nm) or if the blade is damaged.
Before use
- Inspect the area for wildlife, pets, and foreign objects.
- Ensure the blade and blade assembly are not worn or damaged.
- Check that all guards are properly mounted.
- Ensure the battery is fully charged.
- Verify the isolator key is ready for insertion.
Specs in practice
- Cutting width
- 32 cm, the width of the path mowed in one pass.
- Grass bag capacity
- 31 liters, the volume of grass clippings the bag can hold.
Images and diagrams
- Figure A: Delivery scope and components.
- Figure B: Handle assembly steps.
- Figure C-D: Grassbox assembly and attachment.
- Figure E: Adjusting the cutting height.

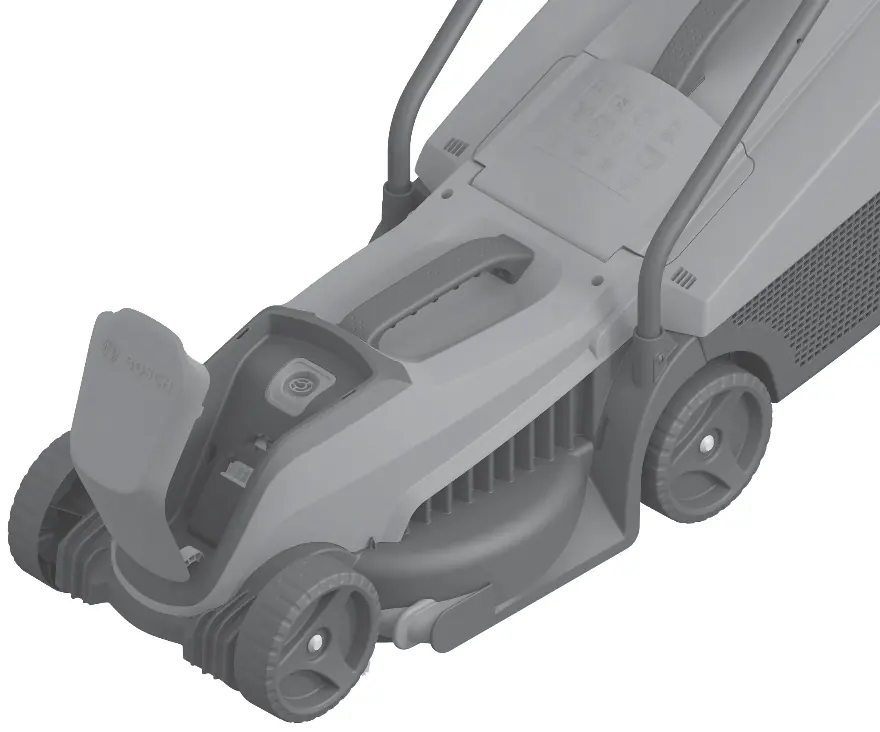

- Figure F-H: Battery insertion and operation sequence.
Model compatibility
- Compatible with Bosch PBA 18V series batteries (3.0 Ah to 6.0 Ah).
- Use only chargers specified by the manufacturer.
- Not intended for hedge cutting, trimming, or shredding.
