This document serves as an official spare parts catalog for the Bosch GBL 18V-120 cordless blower (model number 3 601 JF5 100). It provides an exploded view diagram of the device and a corresponding list of individual components, which is essential for identifying parts during maintenance or repair procedures.

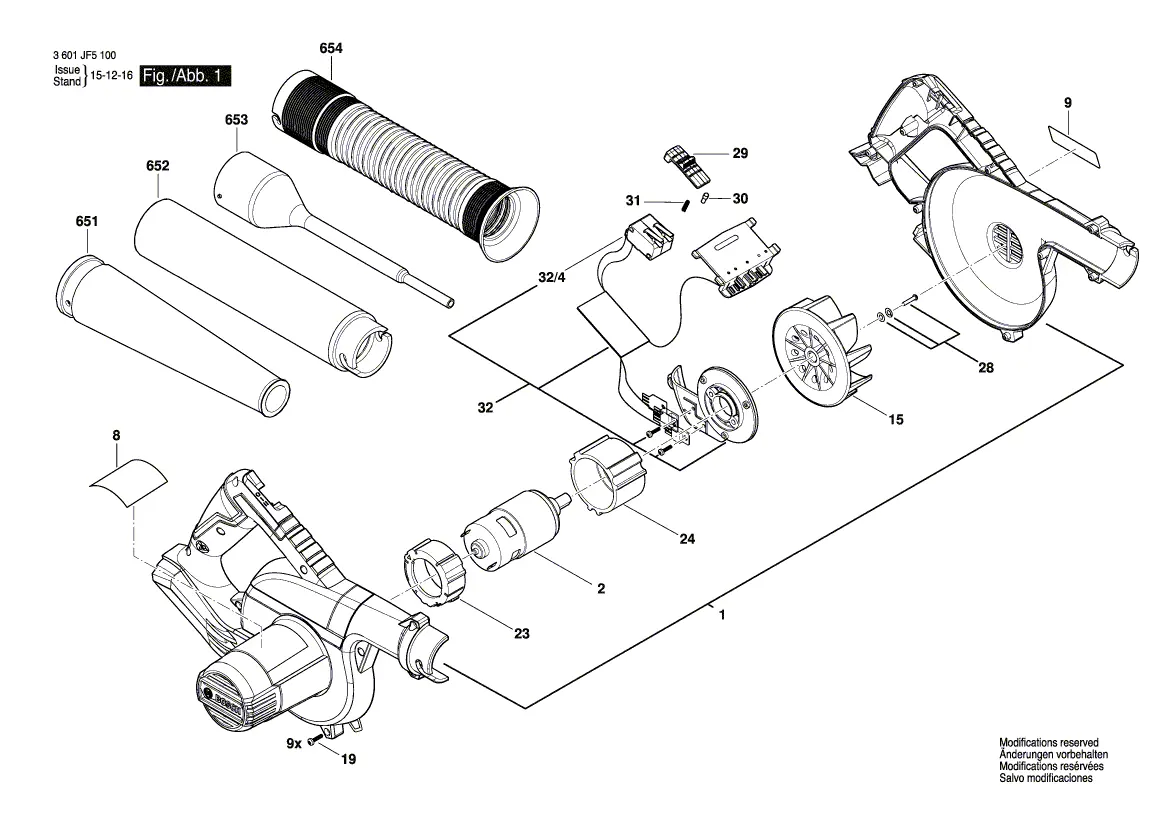

Exploded view and components
The device consists of several key assemblies and individual parts. The exploded view diagram illustrates how these components fit together, including the motor housing, DC motor, fan, and various nozzles and extensions. Users can reference the numbered parts list to identify specific items such as the trigger switch, contact plates, and motor holders.
Spare parts list
The following table lists the primary components identified in the technical documentation:
- 1: Motor housing
- 2: DC motor
- 15: Fan
- 19: Cylindrical bolt
- 23, 24: Motor holder
- 28: Screw
- 29: Reversing switch
- 30: Guide pin
- 31: Contact plate
- 32: Switch and electronics set
- 32/4: Trigger switch
- 651, 653: Nozzles
- 652: Aquatak extension
- 654: Sleeve
Manufacturer information
Bosch
Practical help
Before use
- Verify the model number (3 601 JF5 100) matches your device.
- Ensure all parts listed in the exploded view are present if reassembling.
- Check the condition of the motor housing and fan before operation.
Images and diagrams
- The exploded view shows the internal arrangement of the motor, fan, and electronic components.
- Numbered labels in the diagram correspond directly to the spare parts list for easy identification.
