Bosch GHE 18V-60 (II) Hedge Trimmer Spare Parts Guide
A comprehensive spare parts and assembly reference guide for the Bosch GHE 18V-60 (II) hedge trimmer, including detailed exploded-view diagrams and component identification.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as an official spare parts and assembly reference for the Bosch GHE 18V-60 (II) hedge trimmer (model number 3 600 HC9 400). It provides detailed exploded-view illustrations to assist in identifying internal components, housing sections, and assembly hardware. This guide is intended for maintenance and repair identification purposes.

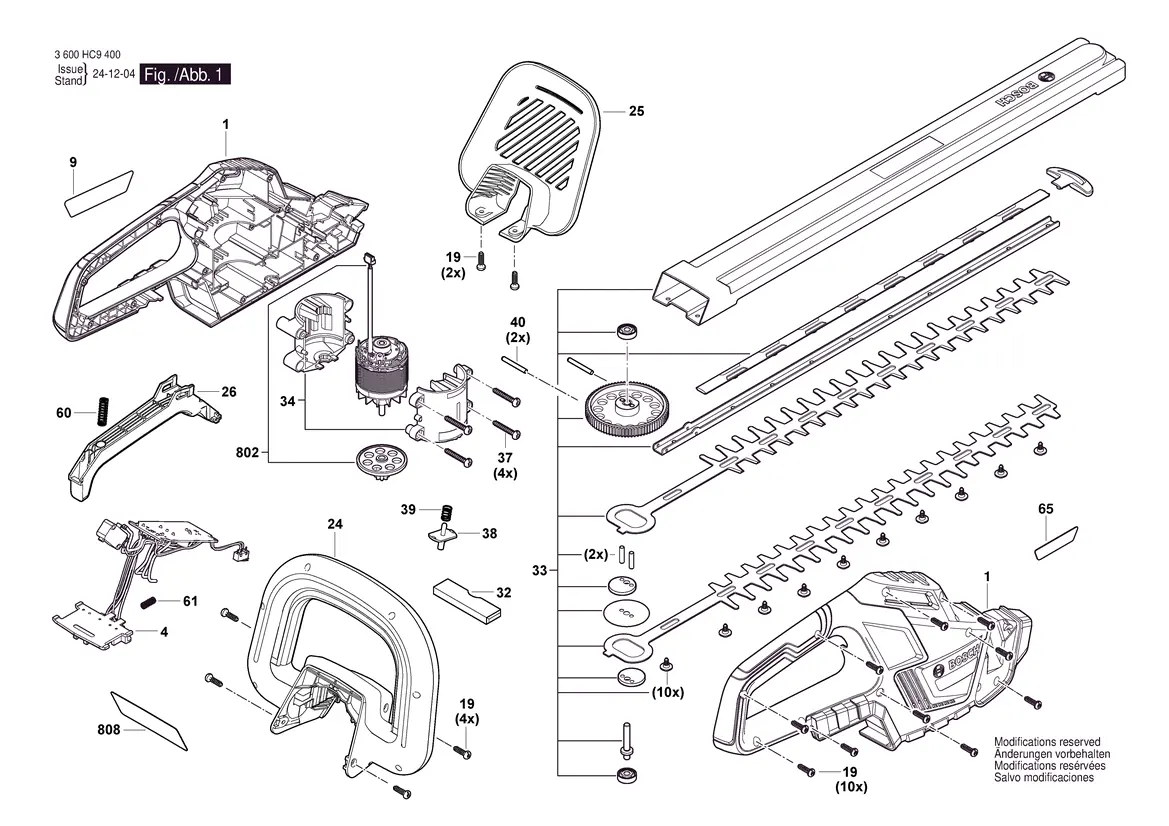

Device components and assembly

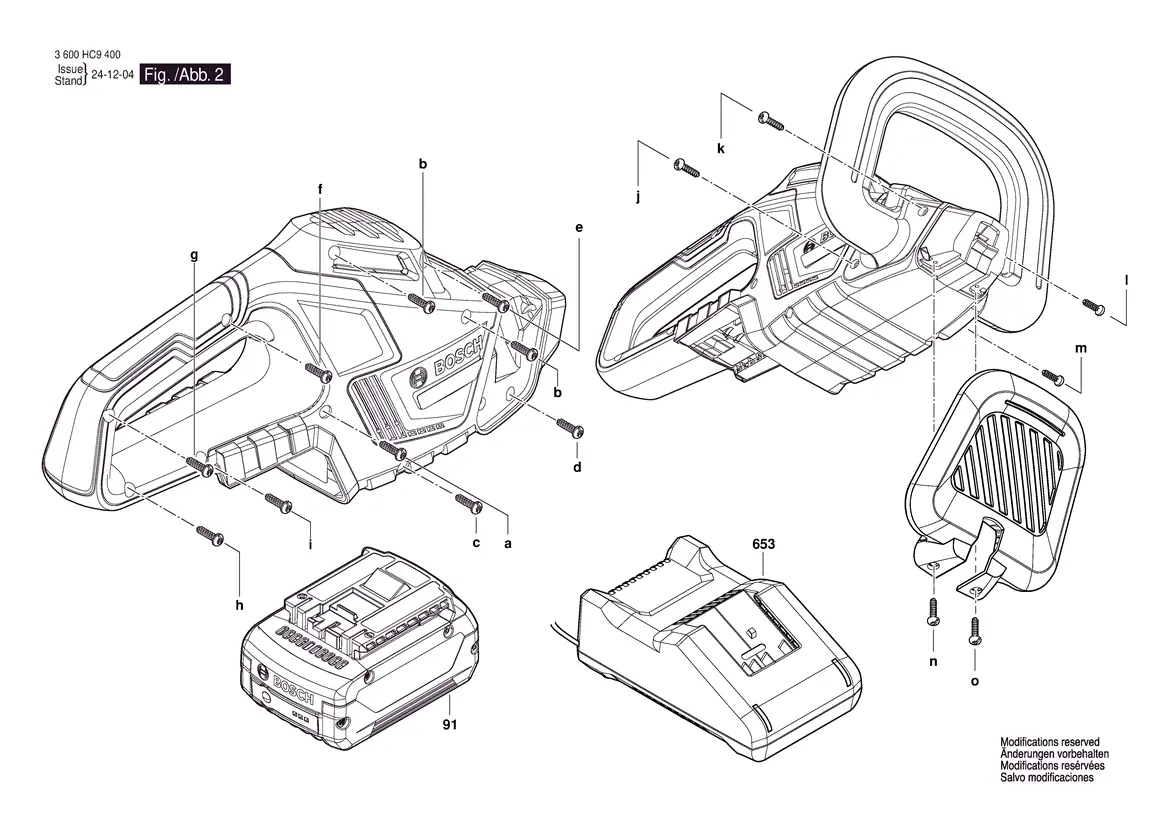

The hedge trimmer is composed of several key modules, including the housing sections, electronic module, DC motor, and the knife set. The assembly relies on specific hardware, such as 4x16 screws and Torx oval-head screws (4x25). The protective shield and handle are external components that can be identified via the provided diagrams.
Spare parts list
The following key components are listed for the GHE 18V-60 (II):
- Housing Sections: Items 1 and 34.
- Electronic Module: Item 4.
- DC Motor: Item 802.
- Knife Set: Item 33.
- Battery Pack: GBA 18V 4.0AH (Item 91).
- Fast Charger: Item 653.
- Hardware: Various screws (19, 37), compression springs (39, 60, 61), and straight pins (40).
Manufacturer information
Bosch
Practical help
Before use
- Verify the battery pack (GBA 18V 4.0AH) is fully charged before operation.
- Ensure the protective shield is securely attached to the housing.
- Check that all housing screws are tightened to maintain structural integrity.
- Inspect the knife set for any debris or damage before starting.
Specs in practice
- Battery Pack
- GBA 18V 4.0AH is the compatible power source for this unit.
- Fast Charger
- Designated charger (Item 653) for the 18V battery system.
- Torx Oval-Head Screw
- Specific 4x25 hardware used for internal motor and housing assembly.
