Spare Parts Guide for Bosch GSR 12V-35 HX Cordless Screw Driver

A comprehensive spare parts reference for the Bosch GSR 12V-35 HX cordless screwdriver, including an exploded view diagram and a detailed list of components for maintenance and repair.

Table of contents

Quick guide from the manual

This document serves as an official spare parts reference for the Bosch GSR 12V-35 HX cordless screwdriver. It provides an exploded view diagram of the tool's internal and external components, along with a corresponding parts list to assist in identification for maintenance and repair purposes.

Device components and spare parts

The manual includes a detailed breakdown of the tool's construction. Key components identified in the spare parts list include:

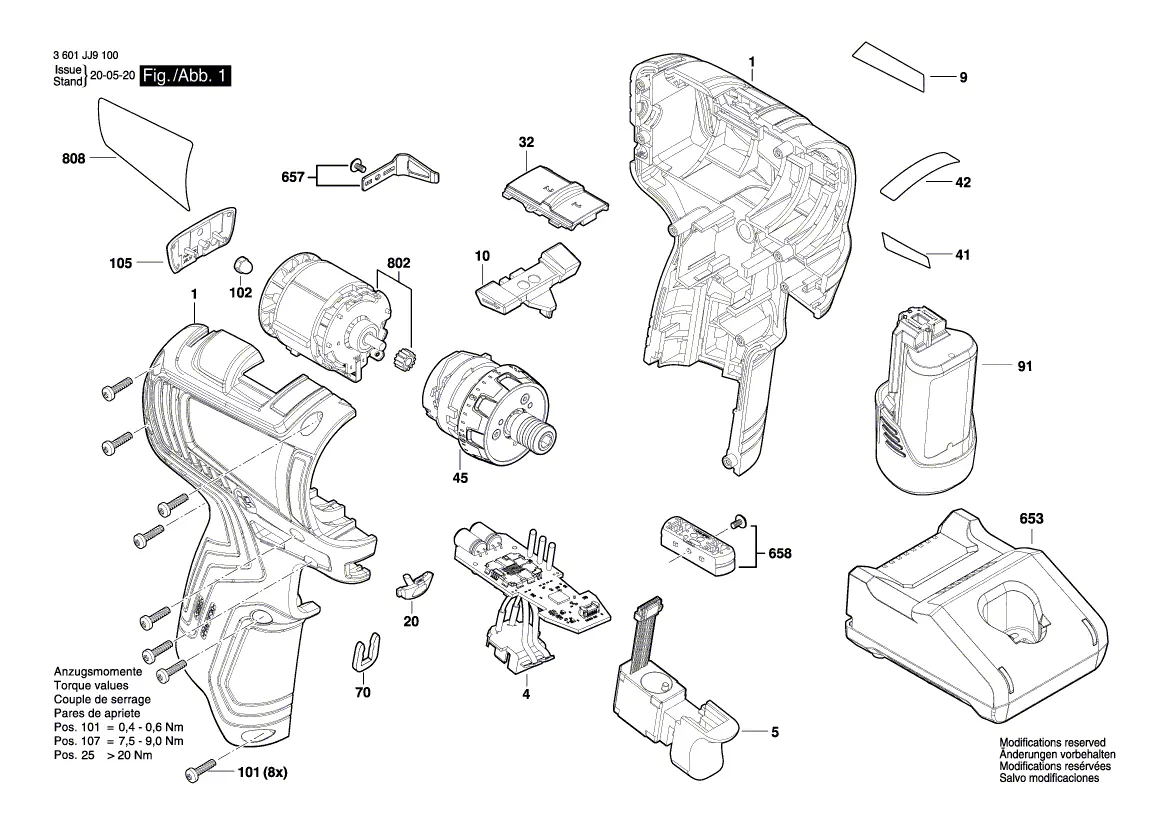

Exploded view diagram of the Bosch GSR 12V-35 HX

Housing: Main body assembly (Item 1).
Motor and Gearbox: Brushless DC motor (Item 802) and gear box (Item 45).
Electronics: Electronic module (Item 4) and switch (Item 5).
Power: Battery pack GBA 12V 3.0 Ah Li (Item 91) and compatible fast charger GAL 12V-40 (Item 653).
Accessories: Bit holder (Item 658) and belt clip (Item 70/657).

Maintenance and assembly information

The exploded view diagram provides critical information regarding assembly, specifically torque values for fasteners to ensure the tool is reassembled correctly:

Screw (Item 101): Tightening torque 0.4 - 0.6 Nm.
Position 107: Tightening torque 7.5 - 9.0 Nm.
Position 25: Tightening torque > 20 Nm.

Manufacturer information

Bosch

Brand profile

Manufacturer website https://www.bosch.com Support https://www.bosch.com/contact

Practical help

Before use

Verify the battery pack (GBA 12V 3.0 Ah Li) is fully charged.
Ensure the correct charger (GAL 12V-40) is used for the battery.
Check that the bit holder is securely attached.
Confirm the housing is intact and all screws are tightened to specified torque values.

Specs in practice

Torque values (Pos 101): 0.4 - 0.6 Nm required for housing screws.
Torque values (Pos 107): 7.5 - 9.0 Nm required for specified internal components.
Torque values (Pos 25): > 20 Nm required for high-load assembly points.
