Bosch GWS 17-125CIE Angle Grinder Parts Diagram
Access the official exploded view diagram for the Bosch GWS 17-125CIE angle grinder. This guide includes detailed component identification, assembly structure, and critical torque specifications for maintenance and repair.
Table of contents

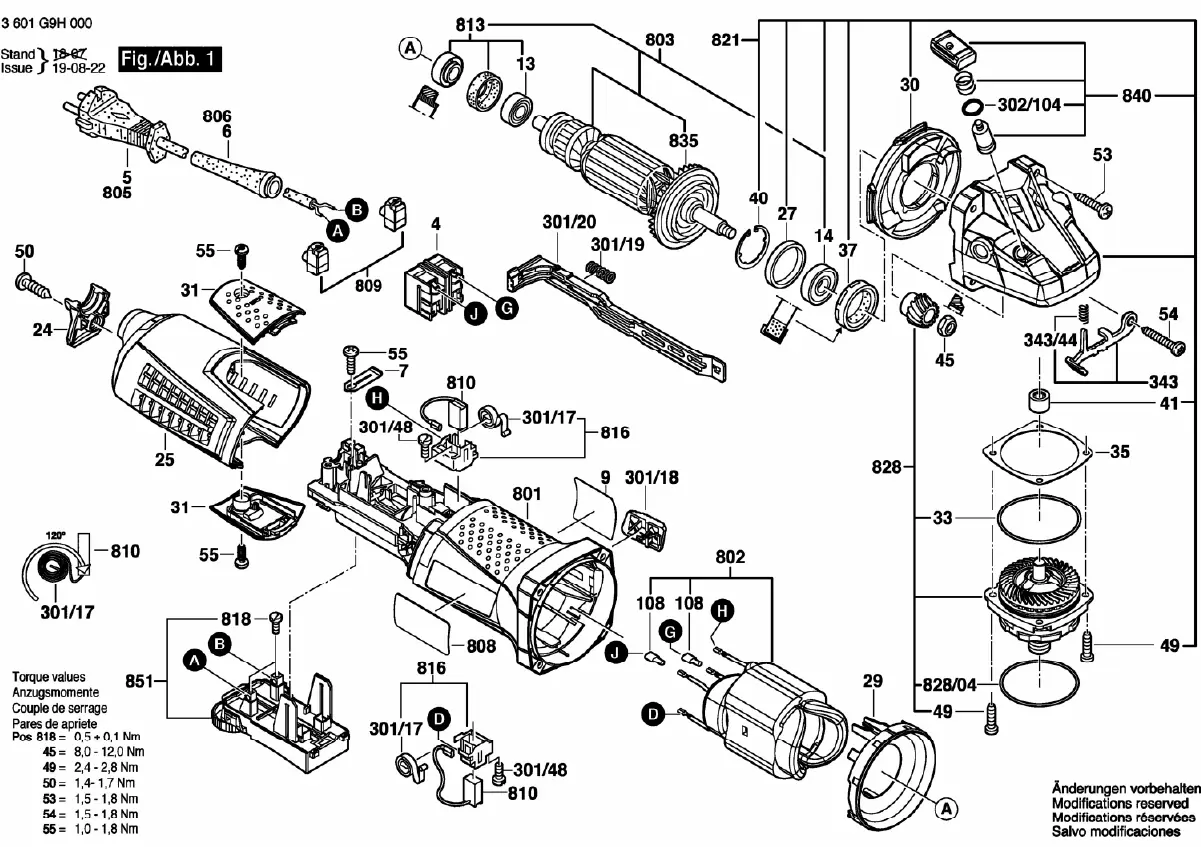

Parts Diagram Overview
This document provides a detailed exploded view diagram for the Bosch GWS 17-125CIE angle grinder. It is designed to assist service technicians and users in identifying components, understanding the assembly structure, and performing correct maintenance procedures. Always refer to this diagram when disassembling or reassembling the tool to ensure all parts are correctly placed.
Assembly and Components
The diagram illustrates the internal and external structure of the angle grinder. Key components shown include the motor assembly, gear housing, electrical connections, and various fasteners. When performing repairs, use the numbered positions in the diagram to identify the correct replacement parts.
Torque Specifications
Proper tightening of fasteners is critical for the safety and performance of the tool. Use the following torque values during reassembly:
- Pos 818: 0.5 ± 0.1 Nm
- Pos 45: 8.0 - 12.0 Nm
- Pos 49: 2.4 - 2.8 Nm
- Pos 50: 1.4 - 1.7 Nm
- Pos 53: 1.5 - 1.8 Nm
- Pos 54: 1.5 - 1.8 Nm
- Pos 55: 1.0 - 1.8 Nm
Manufacturer information
Bosch
Practical help
Common problems
Always use a torque wrench and follow the specified torque values provided in the diagram for positions 45, 49, 50, 53, 54, 55, and 818 to prevent damage or loosening during operation.
Use the exploded view diagram to match the physical component with its corresponding position number to ensure the correct part is ordered or installed.
Before use
- Disconnect the power supply before performing any maintenance or disassembly.
- Ensure you have the correct replacement parts matching the Bosch part numbers.
- Use appropriate tools for assembly and disassembly.
- Verify that all fasteners are tightened to the specified torque values.
