Bosch 18V-780 Impact Screwdriver Service Guide

Quick guide from the manual

This document serves as the official service and assembly reference for the Bosch 18V-780 impact screwdriver (model number 3 601 JP4 000). It provides a detailed exploded view of the tool's internal components to assist with professional maintenance and repair.

Device assembly and components

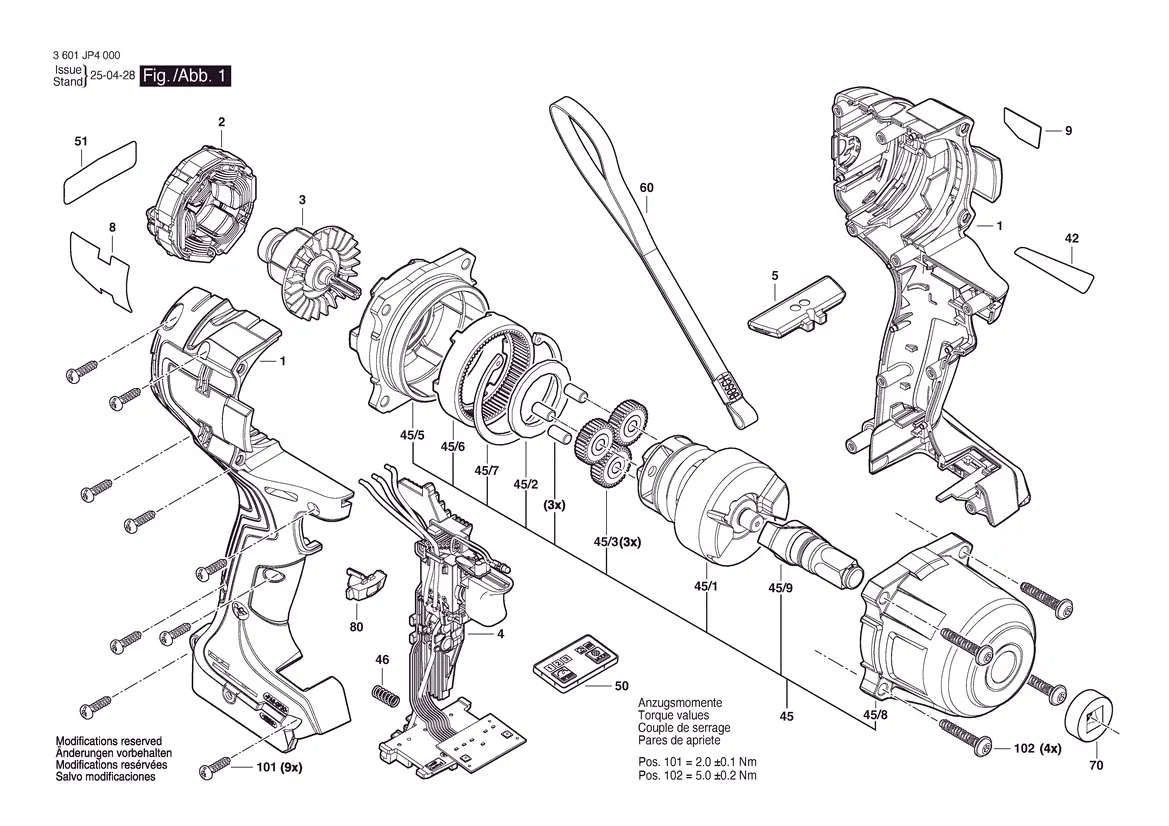

The manual features a comprehensive exploded view diagram illustrating the internal structure of the impact screwdriver. This includes the motor assembly, gear system, housing components, and electronic control modules. Users performing maintenance should refer to this diagram to identify specific part numbers and their correct orientation within the tool housing.

Technical specifications and torque requirements

For proper reassembly of the device, specific torque values must be observed to ensure structural integrity and safe operation:

• Pos. 101: 2.0 Nm (±0.1 Nm)
• Pos. 102: 5.0 Nm (±0.2 Nm)

Adherence to these torque settings is critical during the reassembly process to prevent damage to the housing or internal fasteners.

Contact and support

For further technical assistance or service inquiries, you may contact the manufacturer:

Robert Bosch d.o.oKneza Branimira 2210 040 Zagreb, Croatiahttps://www.boschtoolservice.com
