Spare Parts Guide for Bosch GKE 18V-40 Cordless Chainsaw
A comprehensive spare parts identification guide for the Bosch GKE 18V-40 cordless chainsaw, including an exploded view diagram and a detailed list of components with reference numbers.
Table of contents
Quick guide from the manual
This document serves as an official spare parts identification guide for the Bosch GKE 18V-40 cordless chainsaw (Type 3 600 HD3 000). It provides an exploded view diagram of the tool and a corresponding list of parts with their specific reference numbers to assist in maintenance and repair.

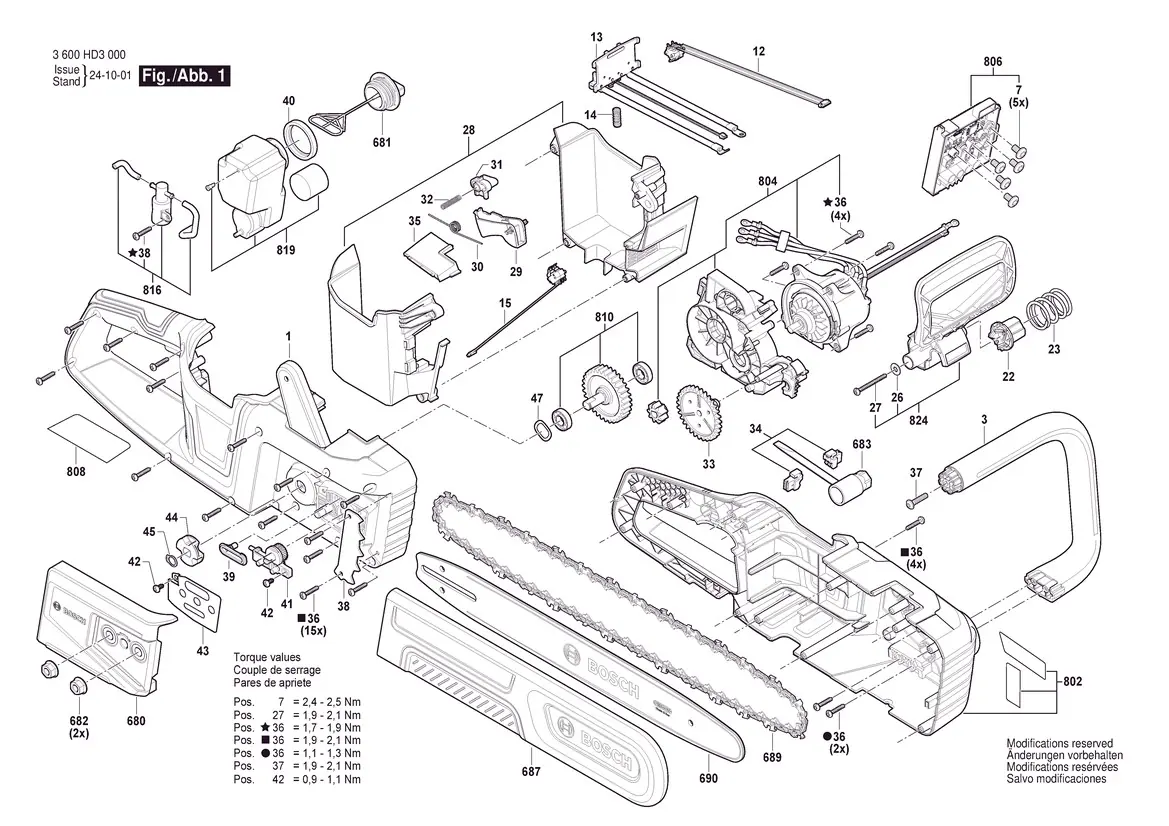

Exploded view and components
The manual features a detailed technical diagram illustrating the assembly of the chainsaw. Key components identified include the motor, electronic control board, chain, guide bar, oil reservoir components, and various fastening elements. Users should refer to the diagram to locate specific parts within the tool housing.
Torque values
For proper reassembly, the manual specifies the following torque requirements for critical fasteners:
- Pos. 7: 2.4 - 2.5 Nm
- Pos. 27: 1.9 - 2.1 Nm
- Pos. 36 (star): 1.7 - 1.9 Nm
- Pos. 36 (square): 1.9 - 2.1 Nm
- Pos. 36 (dot): 1.1 - 1.3 Nm
- Pos. 37: 1.9 - 2.1 Nm
- Pos. 42: 0.9 - 1.1 Nm
Spare parts list
The following components are listed with their official reference numbers:
- Oil reservoir cap seal (Pos. 40): 1 600 A01 5DJ
- Oil reservoir cap (Pos. 681): 1 600 A02 7C7
- Chain tensioning device screw (Pos. 42): 1 603 430 01Y
- Electronic module cable connection screw (Pos. 7): 1 603 430 03T
- DC motor (Pos. 804): 1 617 S02 0SA
- Electronic control board (Pos. 806): 1 617 S02 0SB
- Transmission gear (Pos. 810): 1 617 S02 0SC
- Hand guard (Pos. 824): 1 617 S02 0SD
- Chain tensioning device (Pos. 41): 1 617 S02 0SN
- Guide bar (Pos. 690): 1 617 S02 0SU
- Torx screw 4x20mm (Pos. 36): 2 603 490 023
- Claw nut (Pos. 682): 2 609 001 307
- Chain sprocket circlip (Pos. 45): 2 916 650 001
- Chain (Pos. 689): F 016 800 647
Manufacturer information
Bosch
Practical help
Common problems
Chain tensioning issues
Check the condition of the chain tensioning device (Pos. 41) and its associated screw (Pos. 42).
Oil leakage
Inspect the oil reservoir cap (Pos. 681) and the cap seal (Pos. 40) for wear or damage.
Before use
- Verify the model type is 3 600 HD3 000.
- Ensure all screws (Pos. 36) are tightened to the specified torque range.
- Check that the chain (Pos. 689) and guide bar (Pos. 690) are correctly seated.
- Confirm the hand guard (Pos. 824) is securely attached.
Specs in practice
- Torque values
- Specific tightening force required for various screws to ensure structural integrity and safety.
Images and diagrams
- The exploded view shows the internal layout of the motor, transmission, and electronic control systems.
- Numbers in the diagram correspond directly to the parts list provided in the nomenclature section.
Model compatibility
- Parts are specific to the Bosch GKE 18V-40 model (Type 3 600 HD3 000).
