BOTEX PSA 16/162-3S Residual Current Circuit Breaker (RCBO)

Product Overview

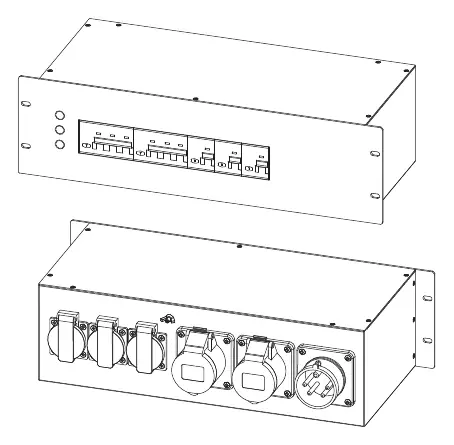

The BOTEX PSA 16/162-3S is a professional 16A power distribution unit equipped with Residual Current Circuit Breaker (RCBO) protection. It features LED indicators for phase voltage and is designed for 19-inch rack mounting (3U). The unit provides reliable power distribution for multiple consumers in stage and industrial environments.

Technical Specifications

• Input: CEE16 400V connector
• Outputs: 3 x grounded sockets (L1, L2, L3), 2 x CEE 16A sockets
• Protection: 2 x RCBO C16A (CEE), 3 x RCBO C16A (grounded sockets)
• RCBO Specs: Type A, 16A nominal current, 30mA residual current, 4-pole
• Dimensions: 482 mm x 133 mm x 250 mm
• Weight: 7 kg
• Protection Rating: IP20
• Operating Conditions: 0°C to 40°C, 20% to 80% relative humidity (non-condensing)

Safety Instructions

Danger: High voltage is present inside the device. Never remove covers or attempt internal maintenance. Always connect the unit using a properly insulated CEE cable. If the cable or plug is damaged, disconnect power immediately and replace with an identical part from the manufacturer.

Operational Safety: Even in standby mode, voltage is present at the outputs. Always disconnect connected devices before performing maintenance. Avoid environments with direct sunlight, heavy dirt, vibrations, or extreme temperature fluctuations. If the device is exposed to cold, allow it to reach room temperature before switching it on to prevent condensation.

Installation and Maintenance

The unit is designed for 19-inch rack mounting (3U). Ensure the device is used only in indoor environments. If the unit is used in dusty or smoky environments, it must be cleaned regularly by qualified personnel to prevent overheating. Note that rubber feet may leave marks on certain surfaces; use protective pads if necessary.

Disposal

This product is subject to the European Waste Electrical and Electronic Equipment (WEEE) directive. Do not dispose of the device with household waste. Use authorized recycling services or return the unit to the manufacturer for proper disposal to protect the environment and recover raw materials.
