Brennenstuhl WCP 20W Wireless Charging Pad User Guide
Quick guide for the Brennenstuhl WCP 20W Wireless Charging Pad. Learn how to adjust the charging angle, connect the device, and use it with compatible Brennenstuhl work lights.
PDF source: Deutsch · summary: English
Quick answers from the manual
Quick answer
- The Brennenstuhl WCP 20W is a wireless charging pad with an adjustable 60-degree angle, compatible with mobile devices and specific Brennenstuhl work lights (TL 1000 ACW and HL 1000 ACW). p. 1, 2
Key actions
- Adjust the charging angle by tilting the surface up to 60 degrees. p. 2
- Place compatible work lights (TL 1000 ACW or HL 1000 ACW) on the pad for charging. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Frequency band | 100 – 300 KHz | Operating frequency range | p. 3 |
| Max. Transmission power | 16.58 dBµA/m@10m | Maximum power output at 10 meters | p. 3 |
Show 1 more answers Show less
Where to find it in the PDF
- Product Overview and Dimensions p. 1
- Usage and Compatibility p. 2
- Regulatory Information p. 3, 4, 5, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Brennenstuhl WCP 20W is a wireless charging pad designed for mobile devices and specific Brennenstuhl work lights. It features an adjustable charging surface and connects via a USB interface.
Device Overview

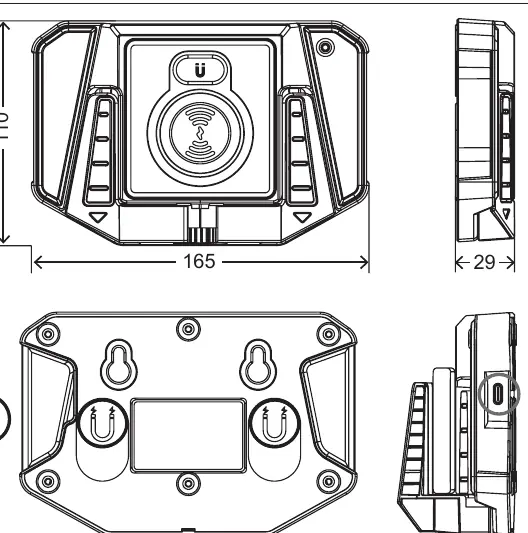

The charging pad has a compact design with dimensions of 165 mm x 110 mm x 29 mm. It includes a USB port for power connection and a magnetic charging indicator.
Usage and Adjustment

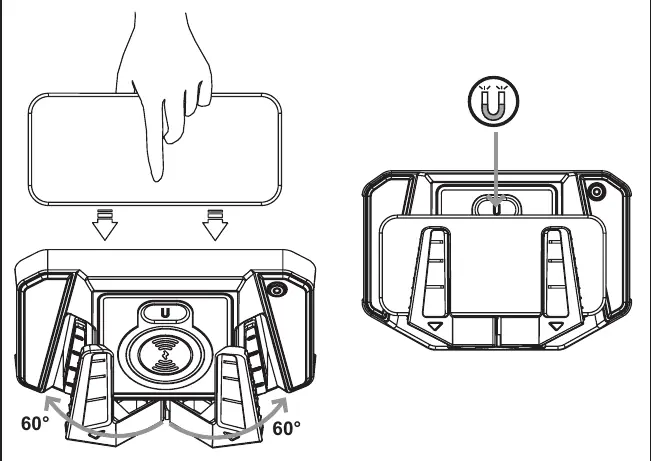

The charging pad allows for angle adjustment to optimize the charging position:
- The charging surface can be tilted up to 60 degrees to suit your device.
- Place your device or compatible work light centrally on the charging surface to initiate charging.
Compatibility

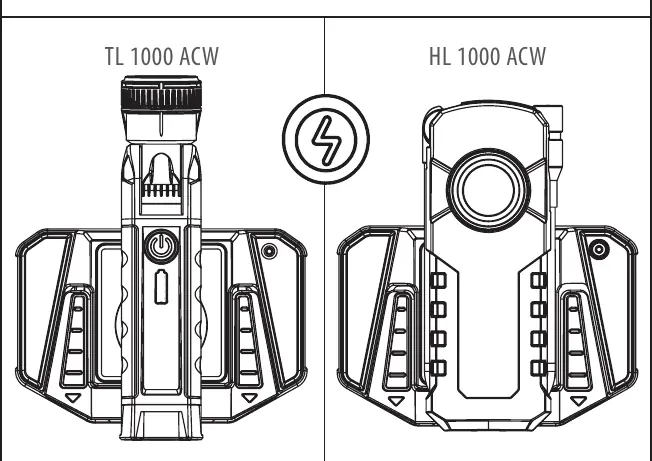

The WCP 20W is specifically designed to be compatible with the following Brennenstuhl work lights:
- TL 1000 ACW
- HL 1000 ACW
Technical Specifications
The device operates within the following parameters:
- Frequency band: 100 – 300 KHz
- Max. Transmission power: 16.58 dBµA/m at 10m
Practical help
Before use
- Ensure the charging pad is connected to a suitable USB power source.
- Verify that the device being charged is compatible with wireless charging.
- Adjust the charging pad angle to the desired position (up to 60 degrees).
- Place the device centrally on the charging pad surface.
Specs in practice
- Frequency band
- The operating frequency range of the wireless charger (100 – 300 KHz).
- Max. Transmission power
- The maximum signal strength emitted by the charger at a distance of 10 meters.
