Caliber RCD 125BT Car Stereo Bluetooth Manual

Product Overview

The Caliber RCD 125BT is a versatile car stereo system featuring FM tuner, CD player, Bluetooth connectivity, USB port, and Micro SD card slot. It supports MP3 and WMA playback with ID3 tag display. The unit delivers 4 x 75W (Max) power output and includes a 3.5mm AUX input for external audio devices.

Technical Specifications

• FM Tuner: 87.5 - 107.9 MHz
• Power Supply: DC 11 - 15 Volt
• Load Impedance: 4 Ohm
• Bluetooth Frequency: 2402-2480 MHz
• Max e.r.p: <100mW/20dBm

Safety Precautions

For safe operation, do not attempt to operate the unit while driving. Ensure the system is installed in a location free from direct sunlight, excessive heat, moisture, dust, or vibrations. Use only 12V negative ground vehicle systems. High volume levels can cause permanent hearing damage; please adjust volume responsibly.

Operation and Bluetooth

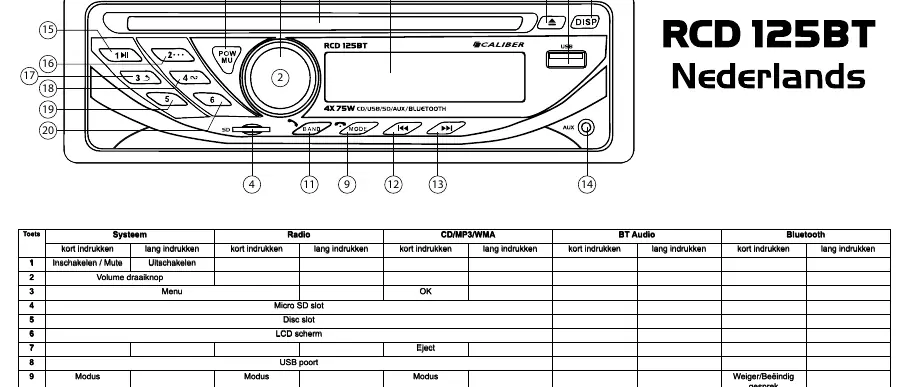

To pair your mobile phone, open the Bluetooth menu by pressing and holding the MODE button. Search for 'RCD125BT CALIBER' on your phone and use the password '0000'. Once connected, 'BT ON' will appear on the display. The unit supports hands-free calling and audio transfer. Use the MODE button to switch between sources (Tuner, AUX, USB, CD). The rotary volume knob also functions as a menu selector for audio settings like Bass, Treble, Balance, Fader, and EQ presets.

Maintenance and Disc Handling

The unit supports standard 12cm round CDs. Do not insert irregularly shaped discs or multiple discs at once. If a 'Disc Error' occurs, ensure the disc is inserted correctly with the label side up. If the error persists, use the reset button with a pointed object. Keep discs clean by wiping from the center outward with a soft, clean cloth. Avoid using adhesive labels or tape on discs, as these can cause operational issues.

Disposal

Old appliances and batteries must not be disposed of with regular household waste. Please dispose of them separately at designated municipal collection points to ensure proper recycling and environmental protection.
