User Manual for Camry CR 4481 0.7L Ice Cream Maker

Quick guide for the Camry CR 4481 0.7L ice cream maker. Includes setup, ingredient preparation, operating modes, cleaning, and safety instructions.

Table of contents

Manual images

Jump to the section
Camry CR 4481 Ice Cream Maker Page 1 Assembly diagram of the ice cream maker Page 2

Quick guide from the manual

This document provides essential instructions for the safe and effective use of the Camry CR 4481 0.7L ice cream maker. The device is intended for domestic use only. Always ensure ingredients are at room temperature before adding them to the mixing chamber. Do not exceed the 0.7L capacity mark inside the device.

Description of the device

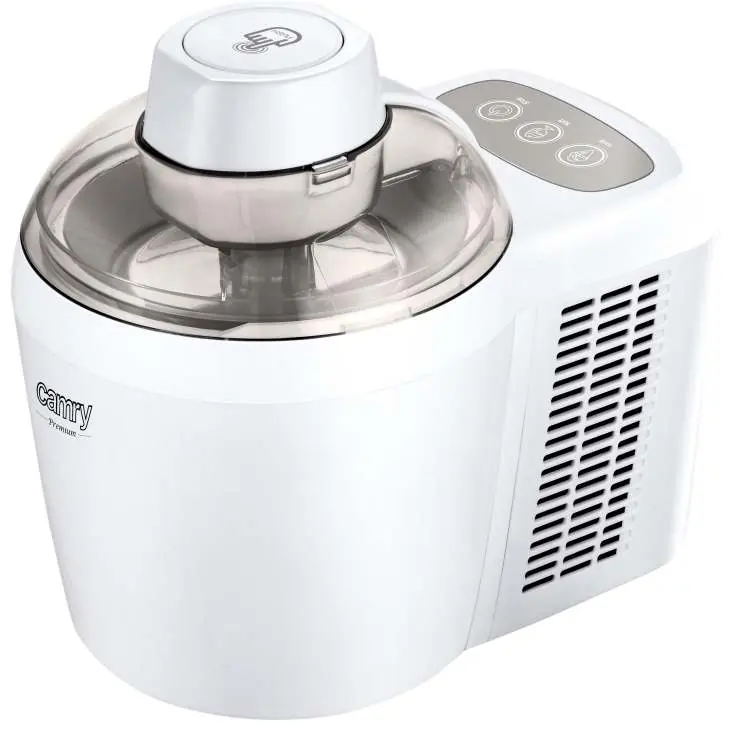

Camry CR 4481 Ice Cream Maker
Camry CR 4481 Ice Cream Maker
  • 1. Cover
  • 2. Guard
  • 3. Engine
  • 4. Cover Lock Button
  • 5. Mixer
  • 6. Housing
  • 7. Mixing chamber
  • 8. Ventilation holes
  • 9. Power adapter
  • 10. Control panel with buttons

Usage

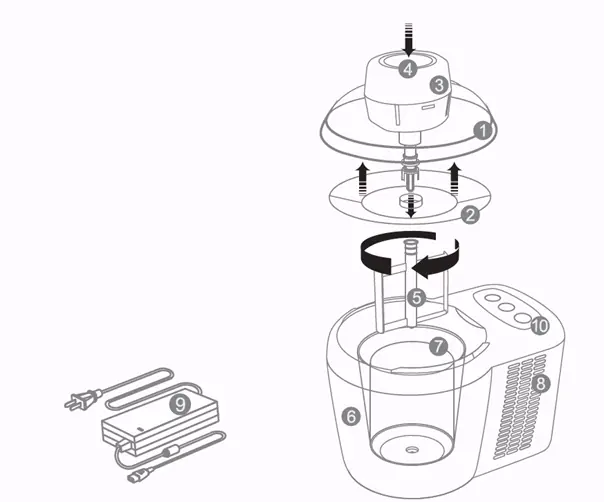

Assembly diagram of the ice cream maker
Assembly diagram of the ice cream maker
  1. Wash the inside of the appliance and the cover before first use.
  2. Connect the power supply to the machine and then to the power outlet. The STOP button will light up.
  3. Prepare your mixture (e.g., 2 eggs, 150ml cream, 50ml milk, sugar/honey, and flavorings like fruit or chocolate).
  4. Place the mixed ingredients into the mixing chamber (7).
  5. Assemble the cover with the mixer as shown in the diagram. Place the cover on the body and turn to lock it.
  6. Select the desired consistency using the buttons (10): HARD (hard frozen) or SOFT (low frozen). The unit will start working.
  7. The process takes between 0.5 and 2 hours depending on ambient temperature and ingredients. The unit will signal completion with a beep.
  8. To stop the machine manually, press the STOP button (10).
  9. When finished, unplug the unit, open the cover, and empty the mixing chamber.

Cleaning and maintenance

Always disconnect the device from the power supply before cleaning. Wipe the outside of the unit with a damp cloth. Clean the mixing chamber and the inside of the lid with a cloth and dishwashing liquid.

Safety

  • Do not immerse the power cable, plug, or the entire device in water.
  • Keep the device and its power cord out of reach of children under 8 years old.
  • Do not use the device if the power cord is damaged or if it has been dropped.
  • Do not move the device during operation.
  • The device is not designed for use with external timers or remote control systems.

Practical help

Common problems

Device does not start

Check if the power adapter is correctly connected to both the device and the power outlet. Ensure the STOP button is illuminated.

Ice cream not freezing properly

Ensure ingredients were at room temperature before starting. Check that the ambient temperature is not too high and that the mixing chamber is not overfilled.

Before use

  • Wash the mixing chamber and cover thoroughly.
  • Ensure all ingredients are at room temperature.
  • Check that the power cable is undamaged.
  • Place the device on a stable, flat, and cool surface.
  • Verify that the mixing chamber is not filled beyond the internal indicator level.

Specs in practice

Capacity: 0.7L
The maximum volume of liquid ingredients the chamber can hold.
Working capacity: 0.3L
The recommended volume for optimal ice cream production.

Images and diagrams

  • The diagram shows the assembly sequence: 1. Cover, 2. Guard, 3. Engine, 4. Lock Button, 5. Mixer, 6. Housing, 7. Mixing Chamber, 8. Ventilation, 9. Power Adapter, 10. Control Panel.

Model compatibility

  • The device is designed for 220-240V ~ 50/60Hz power supply.
  • Not compatible with external timers or remote control systems.
