Installation Instructions for CMA Dishmachines 181VL Drain Water Tempering Kit
Quick installation guide for the CMA Dishmachines 181VL Drain Water Tempering Kit. Learn how to properly attach the kit and position it correctly for optimal performance.
Table of contents
Quick guide from the manual
This document provides the initial installation instructions for the Drain Water Tempering Kit designed for CMA Dishmachines models UC50e and 181VL. The kit is shipped inside the machine and requires manual installation by the installer.
Installation
Follow these steps to install the Drain Water Tempering Kit:
- Locate the kit inside the machine.
- Attach the Drain Water Tempering assembly as shown in the provided diagrams.
- Remove the black plug from the assembly.
- Connect the cold water line to the assembly.
Installation Requirements
Height Constraint: The Drain Water Tempering assembly must be installed no higher than 12 inches from the floor to ensure proper operation.
Manufacturer information
CMA Dishmachines
Practical help
Before use
- Locate the kit inside the machine
- Ensure the assembly is installed no higher than 12 inches from the floor
- Remove the black plug before connecting the water line
Images and diagrams

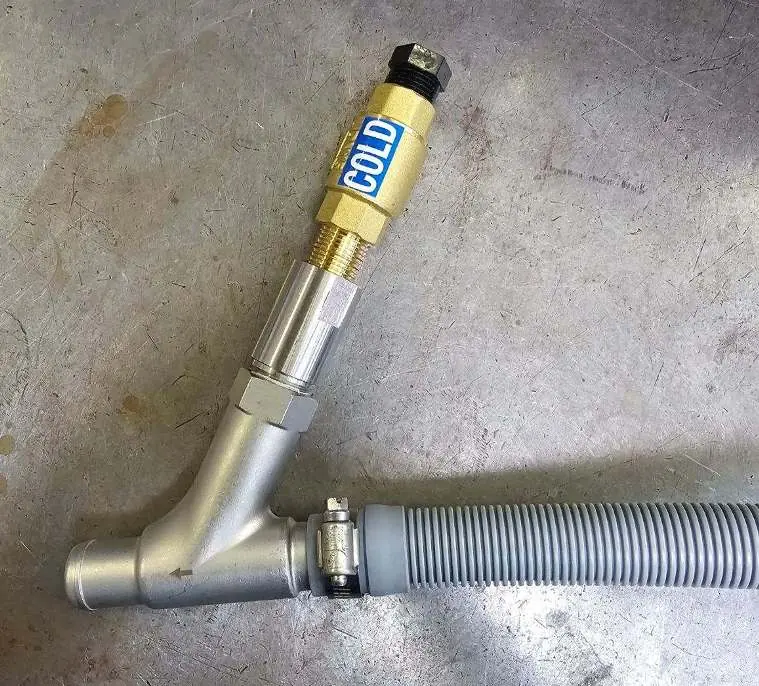

- The assembly consists of a Y-shaped pipe with a 'COLD' labeled connection point.
- The black plug must be removed from the top of the 'COLD' connection before attaching the water line.
