Cosmo Westerleigh TV Stand Assembly Instructions

Quick guide from the manual

This document provides assembly instructions for the Cosmo Westerleigh TV Stand. It is essential to read all safety information before beginning. The assembly process requires 1-2 people and takes approximately 1 hour. Do not return the product to the retailer; contact customer service at 1-800-489-3351 (Monday-Friday, 9am-5pm CST) or visit ameriwoodhome.com for assistance.

Safety and Warnings

• The unit can tip over, which may cause severe injury or death.
• Do not allow children to climb on the unit.
• Always place heavy items on lower shelves or drawers.
• Anchor the unit to a wall stud if instructed.
• Remove all objects before moving the assembled unit.
• The unit must be lifted by more than one person; never drag or push it.

Assembly Preparation

Before starting, ensure you have enough space and the following tools: a flat-head screwdriver, a #2 Phillips head screwdriver, and a hammer. If using a power drill, use low speed and stop immediately when the screw is tight to avoid stripping.

• Open the package in the room where the unit will be kept.
• Identify, sort, and count all parts and hardware before beginning.
• Compression dowels should be tapped in with a hammer.
• Ensure the point on the top of the Cam Lock faces the outer edge.
• Use all provided nails for the back panel to ensure stability.
• Do not use harsh chemicals or abrasive cleaners.

Assembly Steps

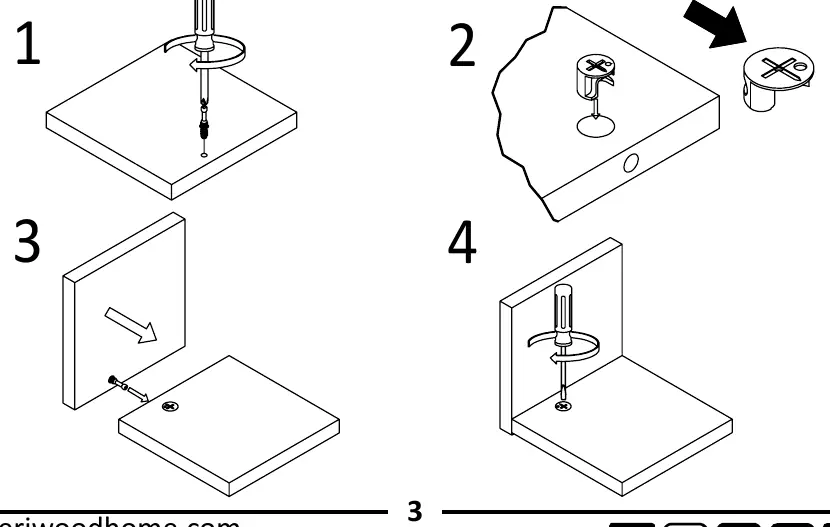

The assembly utilizes a Cam Lock Fastening System. Insert the cam bolt, align the pieces, and tighten the cam lock clockwise to secure the connection.

Step 1 & 2: Handle Installation

Attach the rectangle handles to the doors using the provided screws.

Step 3: Leg Attachment

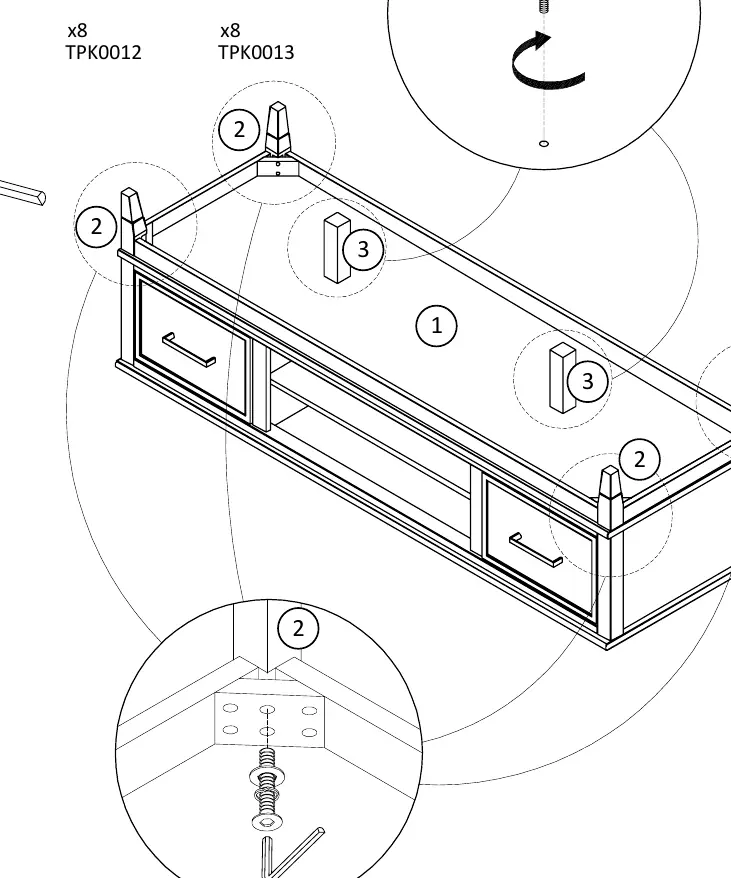

Attach the four main legs and two center legs to the base of the unit using the provided JCBC screws, spring washers, and flat washers. Use the included hex key to tighten.

Maximum Loads

The unit is designed to support flat panel TVs up to 69 inches, with a maximum weight capacity of 120 lbs (54.4 kg). Internal shelves support up to 25 lbs (11.3 kg).
