Craftsman 900 Series 14-Inch Rear Tine Tiller Owner's Manual

Product Overview

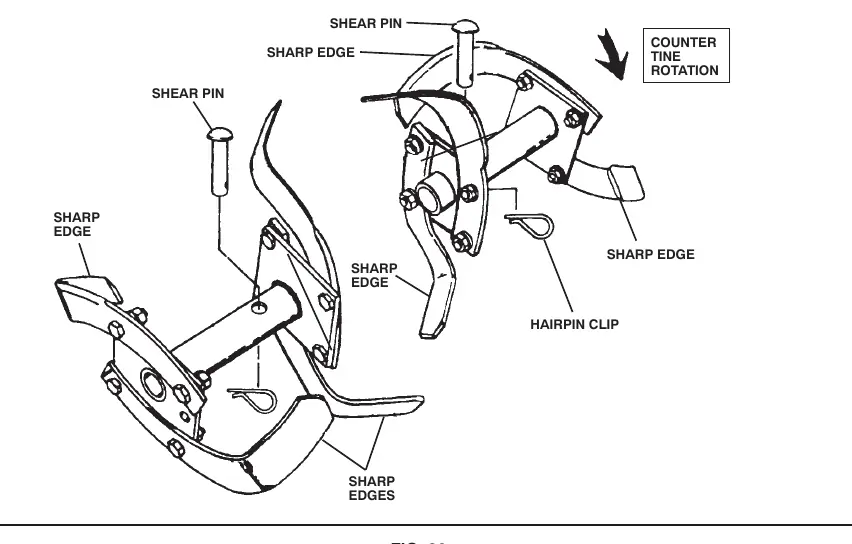

The Craftsman 900 Series 14-inch rear tine tiller is designed for efficient soil preparation, tilling, and cultivating. It features counter-rotating tines for superior performance in various soil conditions. This equipment is powered by an internal combustion engine and requires regular maintenance to ensure optimal operation and longevity.

Safety Rules

Safety is paramount when operating this equipment. Always read the manual thoroughly before use. Key safety practices include:

• Keep children, pets, and bystanders away from the operating area.
• Never operate the engine indoors due to dangerous exhaust fumes.
• Wear appropriate footwear and clothing.
• Always disengage tines and stop the engine before cleaning, inspecting, or leaving the machine unattended.
• Disconnect the spark plug wire before performing any maintenance or adjustments to prevent accidental starting.
• Use caution when tilling in hard ground, as the tines may catch and propel the tiller forward.

Assembly and Setup

The tiller is shipped partially assembled. Follow the detailed instructions in the manual to attach the handle assembly, connect the shift rod, and install the cable clip. Ensure all hardware is tightened securely. Before first use, check the tire pressure and reduce it to 20 PSI for optimal performance.

Operation

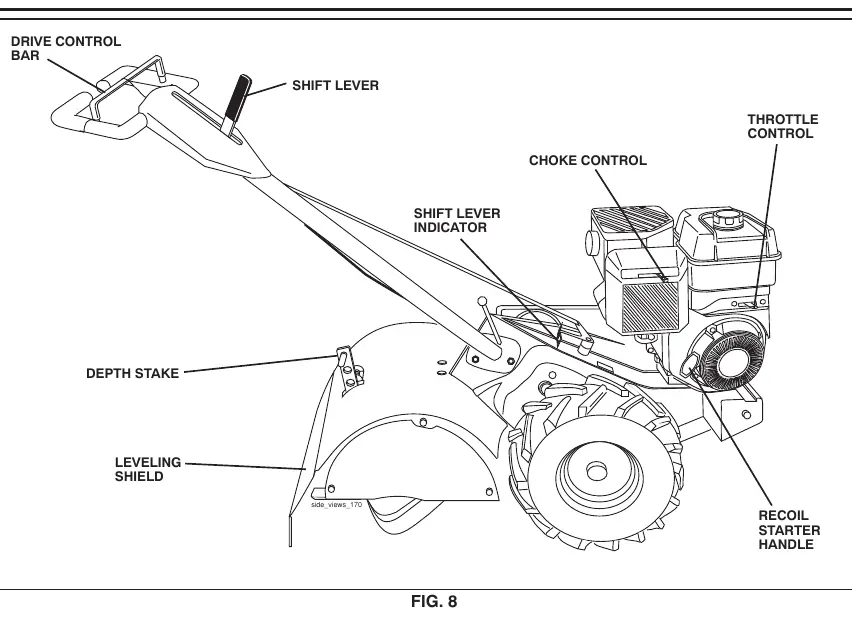

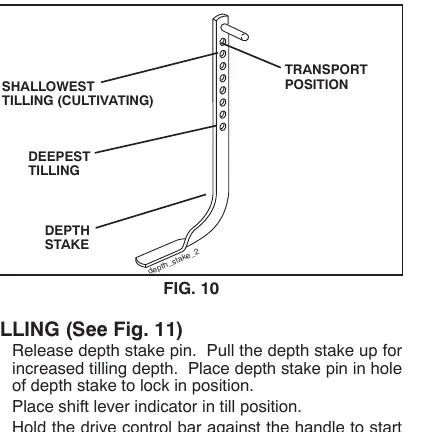

Familiarize yourself with all controls, including the drive control bar, shift lever, throttle control, and depth stake. The depth stake controls the tilling depth; raise it for shallower tilling or transport, and lower it for deeper tilling. Always release the drive control bar before shifting gears. When starting a cold engine, use the choke control and follow the starting sequence outlined in the manual.

Maintenance and Storage

Regular maintenance is essential for the tiller's performance. Follow the maintenance schedule provided, which includes checking engine oil levels, cleaning the air cleaner, and inspecting the spark plug. Lubricate pivot points and the gear case as recommended. For long-term storage, drain the fuel system to prevent gum deposits, change the oil, and store the unit in a clean, dry place.

Troubleshooting

If you encounter issues such as the engine failing to start, loss of power, or excessive vibration, consult the troubleshooting section. Common solutions include checking fuel levels, cleaning the air filter, ensuring the spark plug wire is connected, or adjusting the depth stake. If problems persist, contact an authorized service center.
