Assembly Instructions for Crystorama 2443-OP-VG Bathroom Vanity Light
Quick guide for installing the Crystorama 2443-OP-VG 3-light bathroom vanity fixture. Includes assembly steps, parts list, electrical requirements, and safety warnings.
Quick answers from the manual
Quick answer
- The Crystorama 2443-OP-VG is a 3-light bathroom vanity fixture. It requires installation by a licensed electrician and uses 3 Medium Base bulbs (60W recommended, 100W max). p. 1
Key actions
- Install the mounting plate to the outlet box. p. 1
- Secure the backplate to the mounting plate. p. 1
- Attach glass shades and bulbs. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Medium Base | Standard bulb socket | p. 1 |
| Wattage | 60W (Rec) / 100W (Max) | Recommended and maximum bulb wattage | p. 1 |
| Rating | Damp rated | Suitable for bathroom use | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF

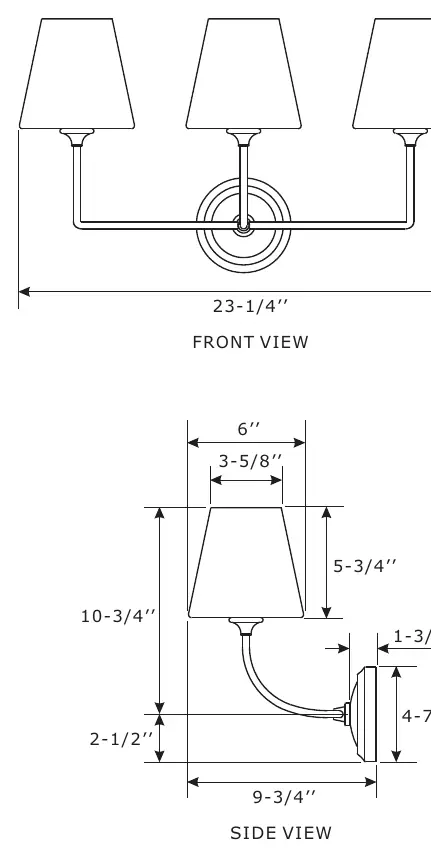

- Installation and Specifications p. 1

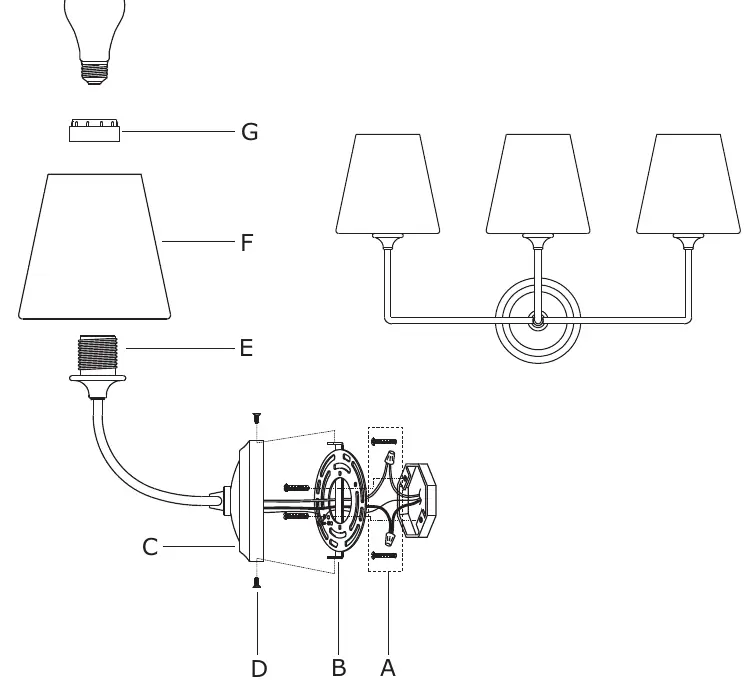

- Parts List and Assembly Diagram p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and installation instructions for the Crystorama 2443-OP-VG 3-light bathroom vanity fixture. Please ensure all electrical work is performed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
Safety Information
- Electrical Danger: Always turn off power at the circuit breaker before beginning installation.
- California Prop 65: This product can expose you to Lead, which is known to the state of California to cause cancer and/or birth defects or reproductive harm.
- Environment: This fixture is Damp rated, making it suitable for bathroom environments.
Installation Steps
- Install the mounting plate to the outlet box using two outlet box screws.
- Install the backplate onto the mounting plate and secure it with the screws.
- Install the glass shade over the socket and secure it with the socket ring.
- Install the bulb (not included) into the socket.
Parts List
- Mounting hardware
- Mounting plate
- Backplate
- Screws
- Socket
- Glass shade
- Socket ring
Technical Specifications
- Bulb Type: 3x Medium Base Bulbs
- Wattage: 60 Watts Recommended, 100 Watts Maximum
- Bulb Recommendation: Use LED bulbs for extended use
Manufacturer information
Crystorama
Practical help
Common problems
Fixture does not turn on
Ensure the power is turned on at the breaker and the bulbs are properly installed.
Fixture is loose
Check that the mounting plate is securely fastened to the outlet box and the backplate screws are tightened.
Before use
- Turn off power at the main circuit breaker.
- Ensure you have a licensed electrician for installation.
- Verify the outlet box is compatible and secure.
- Purchase 3 Medium Base bulbs (not included).
- Check that all parts listed in the manual are present.
