This document provides essential mounting configurations for the Dahua 0210B-S2 4MP IR Dome Net Camera. It is intended for installers and users to understand the physical installation capabilities of the device. Ensure all mounting surfaces are capable of supporting the weight of the camera and any associated mounting hardware.

Mounting configurations

The camera supports various installation methods depending on the environment and surveillance requirements. Choose the appropriate hardware for your specific mounting surface:

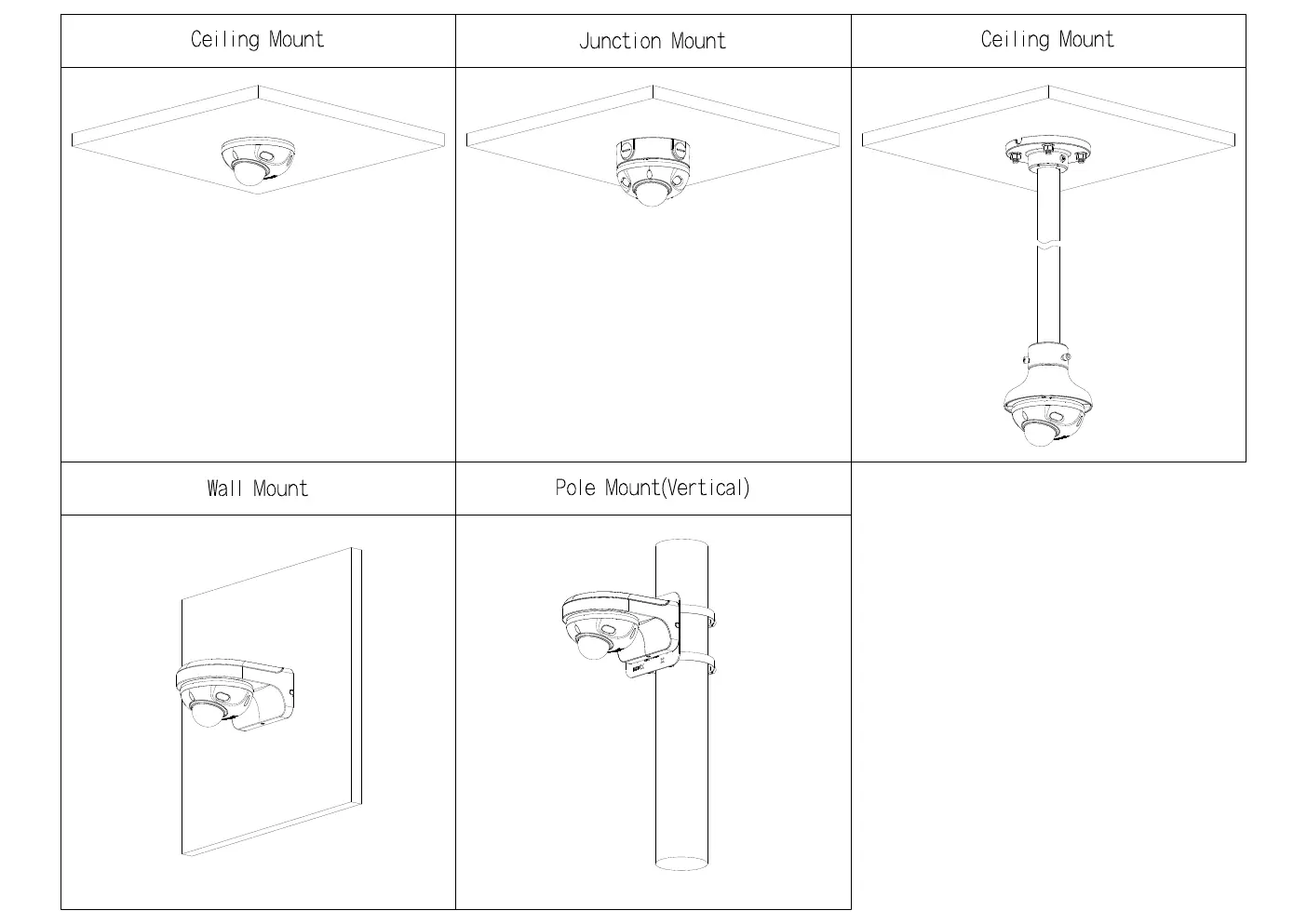

Available mounting options for the Dahua 0210B-S2 camera including ceiling, junction, pendant, wall, and pole mounts.

Ceiling Mount: Direct attachment to a flat ceiling surface.
Junction Mount: Installation using a junction box for cable management and protection.
Pendant Mount: Ceiling installation using a pipe or conduit extension for lower positioning.
Wall Mount: Side-mounting on vertical surfaces.
Pole Mount (Vertical): Attachment to vertical poles using specialized brackets.

Manufacturer information

Zhejiang Dahua Technology Co., Ltd.

Brand profile

Manufacturer website https://www.dahuasecurity.com/ Support https://www.dahuasecurity.com/support/ Manufacturer manuals https://www.dahuasecurity.com/support/downloadCenter

Practical help

Before use

Verify the mounting surface can support three times the weight of the camera and bracket.
Ensure all cables are properly routed through the chosen mount to prevent damage.
Check that the mounting hardware is compatible with the specific surface material (e.g., concrete, wood, metal).
Confirm the camera orientation is correct for the desired field of view before tightening fasteners.

Images and diagrams

The provided diagrams illustrate five distinct mounting methods: standard ceiling, junction box, pendant/pipe, wall, and vertical pole mounting.
Each diagram indicates the necessary orientation of the camera housing relative to the mounting surface.
