DAKE 150H-2023 Hand Operated Machine Parts and Assembly Manual
Comprehensive parts breakdown and assembly diagrams for the Dake 150H-2023 hand-operated machine, including handpump, workhead, and table hoist assemblies.
Table of contents
Product Overview
The Dake 150H-2023 is a precision-engineered hand-operated machine designed for industrial applications. This documentation provides detailed exploded views and comprehensive parts lists for the primary assemblies, facilitating maintenance, troubleshooting, and component replacement.
Assembly Breakdown
The machine is composed of several critical sub-assemblies, each detailed with specific components and hardware:

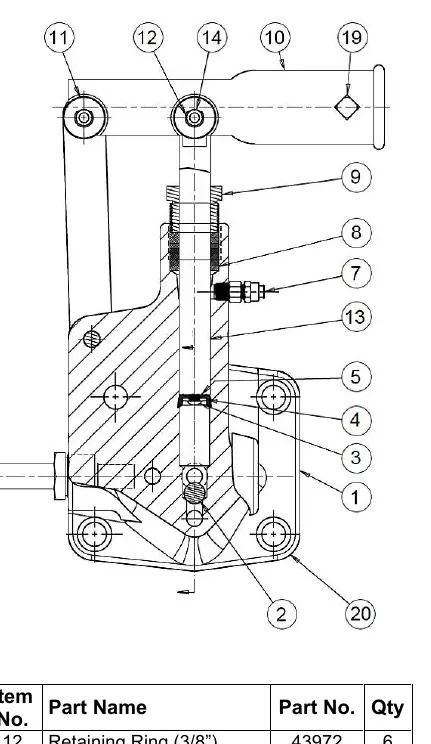

- Handpump Assembly: Includes the pump body, ball valves, plunger, and associated packing components required for hydraulic pressure generation.

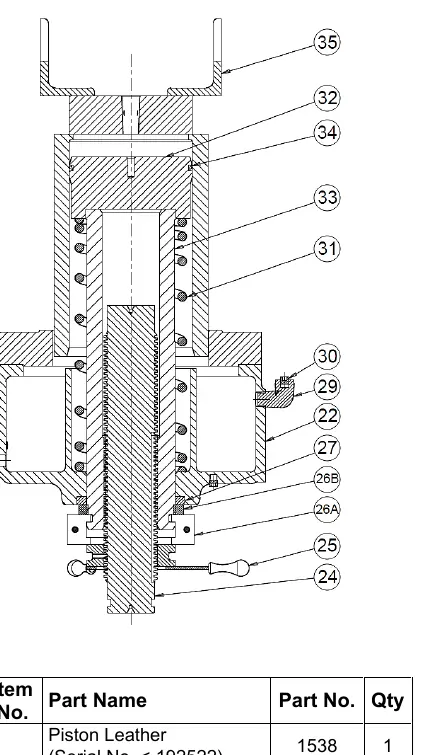

- Workhead Assembly: Features the reservoir, piston assembly, cylinder, and sealing components. Note that certain parts, such as the piston assembly, may vary based on the machine serial number.
- General Assembly: Covers the main frame, table components, gauge, and roller systems.

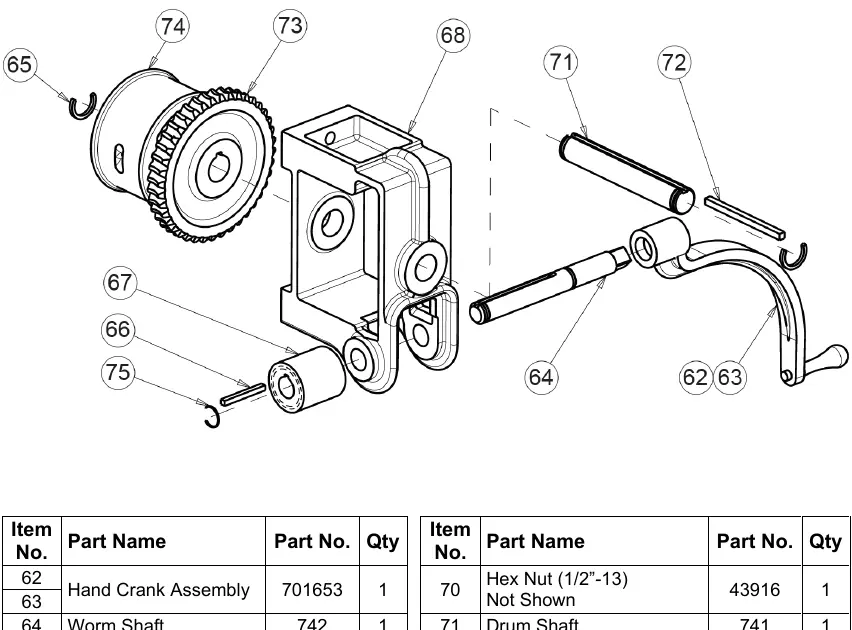

- Table Hoist Assembly: Details the mechanism for adjusting the table height, including the hand crank, worm gear, and cable drum.
Maintenance and Ordering
To ensure optimal performance and safety, regular inspection of seals, gaskets, and moving parts is recommended. When components show signs of wear, they should be replaced using genuine Dake parts. For ordering, please provide the specific part number, part name, and the machine model number. Parts are available directly through Dake or authorized distributors.
Safety and Operation
Always ensure that the machine is operated within its specified parameters. Maintenance should only be performed by qualified personnel. When replacing hydraulic seals or internal components, ensure the system is depressurized and the machine is in a safe, stable state. Refer to the provided exploded views to correctly identify hardware and assembly sequences during reassembly.
