This document provides installation guidance for the Danfoss 027F3156 repair kit, designed for PM, PML, and PMLX valves of size 80. Use the provided exploded diagrams to identify the correct placement of components during maintenance.
Valve diagrams
The manual includes exploded view diagrams for the following valve types:

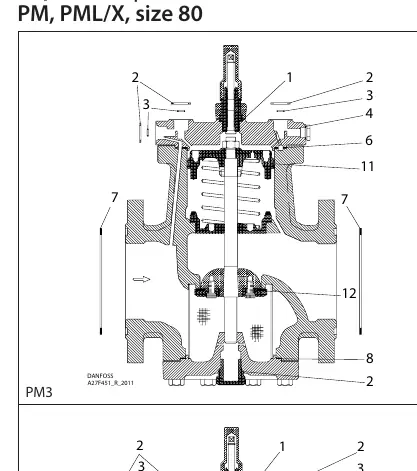

- PM3: Shows the assembly sequence and component placement.

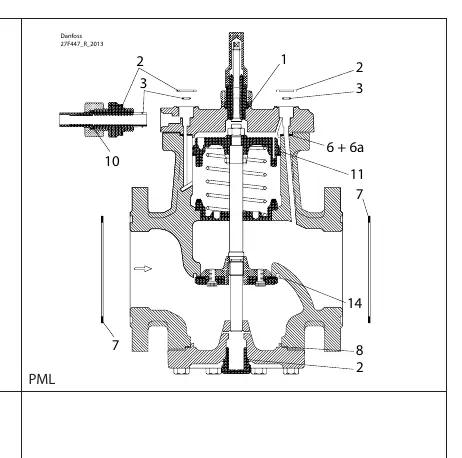

- PML: Detailed view of the valve structure and part locations.

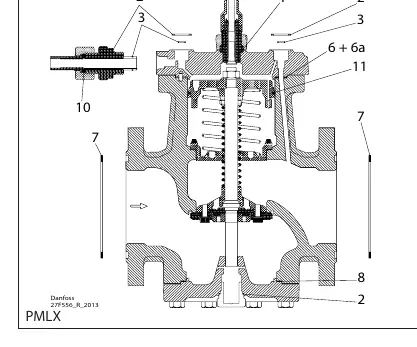

- PMLX: Specific assembly diagram for the PMLX model.
Refer to the numbered labels in the diagrams to match parts with the list provided in the kit documentation.
Parts list
The repair kit contains various components, including gaskets and seals made of Aluminum (Alu.) or Fiber (Fibre). Each part is identified by a number, dimension (in mm and inches), and quantity.
Note: Some parts included in the package (marked with an asterisk *) are not used for PM, PML/X 80 models.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Some parts (marked with *) are included in the kit but are not used for PM, PML/X 80 models.
Before use
- Verify valve model (PM, PML, or PMLX size 80).
- Ensure the repair kit code is 027F3156.
- Identify parts using the exploded diagrams on page 1.
- Check part materials (Alu/Fibre) and dimensions before installation.
