Quick Guide

This document provides the assembly diagram and parts list for the Danfoss ICLX size 125 overhaul kit (Code 027H7222). Use this guide to identify components and their correct placement during maintenance of the ICLX valve.

Assembly Diagram

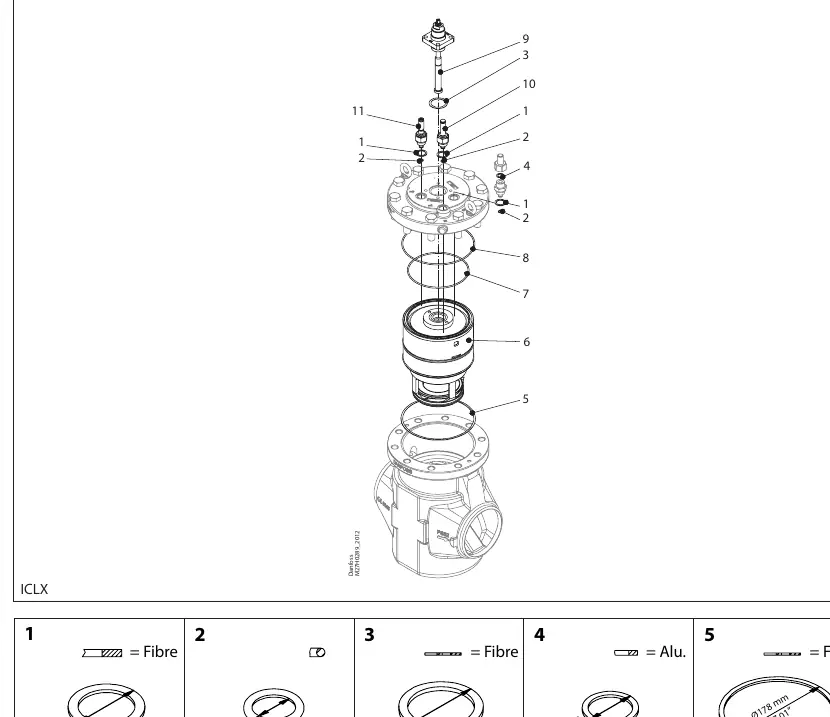

The exploded view illustrates the correct order of assembly for the ICLX valve components. Ensure all parts are installed in the sequence indicated by the numbers 1 through 11.

Exploded view of the ICLX valve with numbered components

Parts List and Specifications

The kit contains the following components. Ensure the correct material is used for each seal as specified:

1: Gasket (Ø32.5 mm, Fibre, Qty: 3)
2: Gasket (Ø9 mm, Fibre, Qty: 3)
3: Gasket (Ø54 mm, Fibre, Qty: 1)
4: Gasket (Ø22 mm, Alu, Qty: 1)
5: Gasket (Ø178 mm, Fibre, Qty: 1)
6: Valve component (Qty: 1)
7: Gasket (Ø133 mm, Qty: 1)
8: Gasket (Ø165 mm, Fibre, Qty: 1)
9: Valve component (Qty: 1)
10: Valve component (Qty: 1)
11: Valve component (Qty: 1)

Manufacturer information

Danfoss A/S

Brand profile

Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Incorrect seal material installation

Ensure Fibre gaskets are used for positions 1, 2, 3, 5, 8 and Aluminium is used specifically for the 22mm gasket at position 4.

Before use

Verify the kit code is 027H7222
Confirm the valve size is ICLX 125
Check all 11 components are present before starting assembly
