Click an image to enlargeQuick Guide for Repair Kit 032F2324
This document provides the installation and parts reference for the Danfoss 032F2324 repair kit, specifically designed for the EVM NC valve series. The kit contains all necessary seals and components for maintenance, as detailed in the exploded view diagram.
Parts Overview

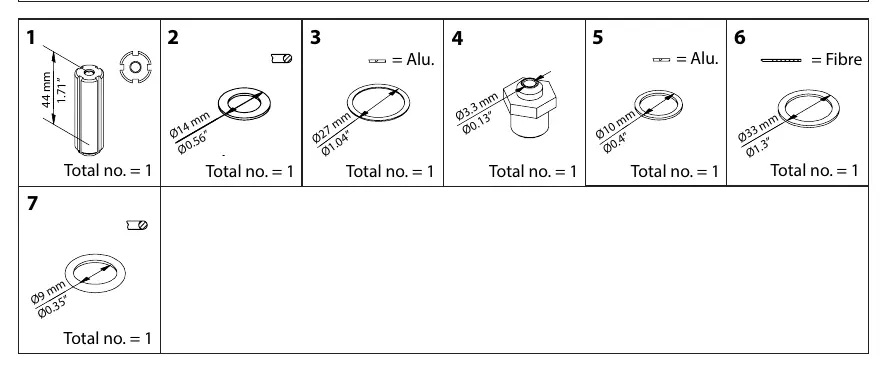

The repair kit includes 7 distinct components. Ensure all parts are present before beginning the repair process:
- 1: Valve component (44 mm / 1.71")
- 2: O-ring/Seal (Ø14 mm / Ø0.56")
- 3: O-ring/Seal (Ø27 mm / Ø1.04", Material: Aluminium)
- 4: Valve component (Ø3.3 mm / Ø0.13", Material: Aluminium)
- 5: O-ring/Seal (Ø10 mm / Ø0.4")
- 6: O-ring/Seal (Ø33 mm / Ø1.3", Material: Fibre)
- 7: O-ring/Seal (Ø9 mm / Ø0.35")
Each item listed is included as a single unit (Total no. = 1).
Assembly Details
The provided exploded view diagram illustrates the correct positioning of the components within the EVM NC valve assembly. Follow the numbered sequence (1-7) to identify the location of each seal and component during the maintenance procedure.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Confirm the valve model is EVM NC.
- Verify the repair kit code is 032F2324.
- Ensure all 7 components are present before starting the repair.
Images and diagrams

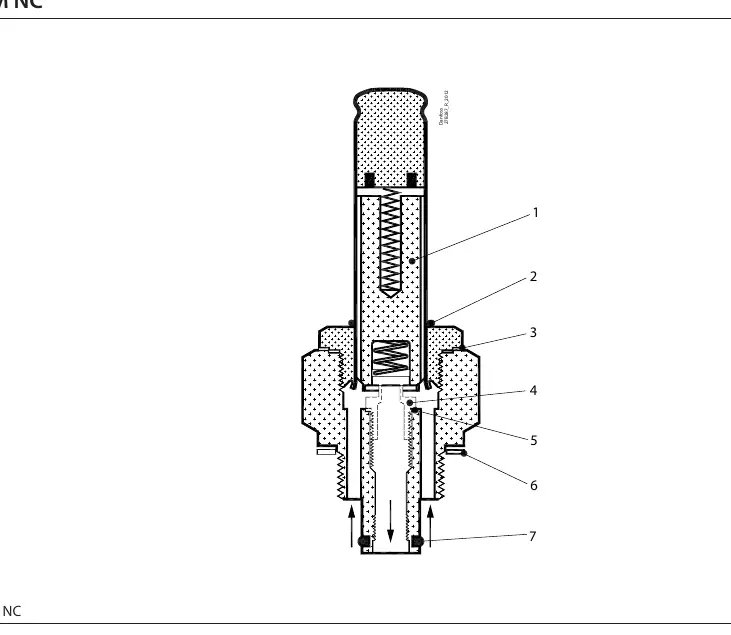

- The diagram shows an exploded view of the EVM NC valve with numbered parts 1 through 7 corresponding to the components in the kit.
