Installation Guide for Danfoss 032F2329 Repair Kit
Quick installation guide for the Danfoss 032F2329 repair kit for EVRA and EVRS size 3 valves. Includes parts breakdown, dimensions, and assembly diagrams.
Table of contents
Quick Guide for Danfoss 032F2329 Repair Kit
This document serves as an installation and parts reference for the Danfoss 032F2329 repair kit. It is specifically designed for the maintenance of EVRA and EVRS size 3 valves.
Parts Breakdown
The kit includes the following components, identified by their dimensions and material specifications:
- Part 1: 42mm (1.65"), used for AC/DC applications.
- Part 2: 14mm (0.56").
- Part 3: 27mm (1.04"), Aluminium.
- Part 4: 2.6mm (0.10").
- Part 5: 10mm (0.4"), Aluminium.
- Part 6: 32mm (1.26"), Fibre material (Total quantity: 2).
Assembly Diagrams

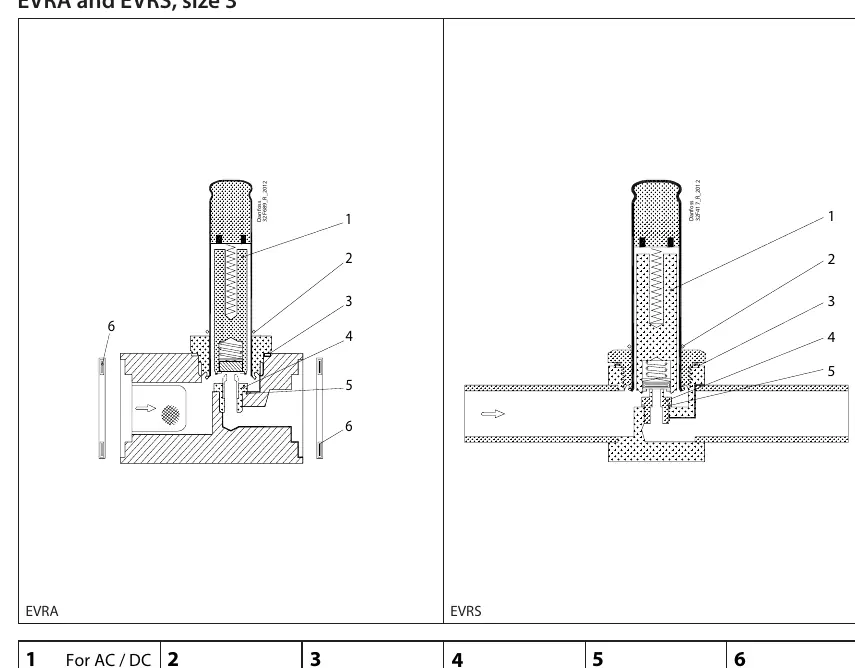

The provided diagrams illustrate the correct placement of parts 1 through 6 within the EVRA and EVRS valve bodies. Ensure that the components are installed in the correct orientation as shown in the schematic.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify valve model is EVRA or EVRS size 3
- Ensure all 6 part types are present in the kit
- Check material compatibility (Aluminium/Fibre) for specific parts
Images and diagrams
- The diagram illustrates the internal assembly sequence for EVRA and EVRS valves.
- Parts are numbered 1 through 6 to correspond with the parts list.
