Installation Guide for Danfoss 032F2343 Repair Kit
Quick installation guide for the Danfoss 032F2343 repair kit for EVRAT and EVRST size 10 valves. Includes parts list, material specifications, and assembly diagrams.
Table of contents
Manual images
Jump to the sectionQuick Guide
This document provides the parts breakdown and assembly reference for the Danfoss 032F2343 repair kit. It is designed for use with EVRAT and EVRST valves, size 10. Use the provided diagrams to identify the correct placement of each component during valve maintenance.
Compatibility
The 032F2343 repair kit is specifically engineered for the following Danfoss valve models:
- EVRAT (size 10)
- EVRST (size 10)

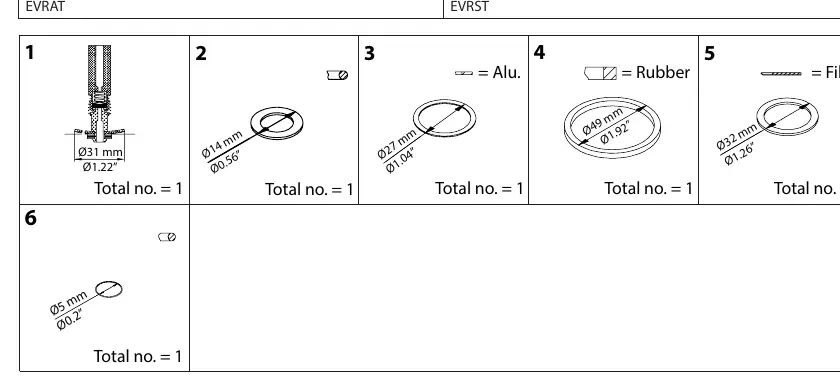

Parts List and Specifications
The kit contains the following components. Ensure all parts are accounted for before beginning the repair:
- Part 1: 31 mm diameter (Total: 1)
- Part 2: 14 mm diameter (Total: 1)
- Part 3: 27 mm diameter, Aluminum (Total: 1)
- Part 4: 49 mm diameter, Rubber (Total: 1)
- Part 5: 32 mm diameter, Fibre (Total: 2)
- Part 6: 5 mm diameter (Total: 1)
Assembly Reference
Refer to the exploded view diagrams provided in the document to identify the correct placement of each numbered part within the EVRAT or EVRST valve assembly. Ensure that the specific material types (Aluminum, Rubber, Fibre) are installed in their designated locations as indicated by the parts list.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the valve model is EVRAT or EVRST size 10.
- Check that all 6 part types are present in the kit.
- Ensure the correct material (Alu, Rubber, Fibre) is used for the corresponding part location.
Images and diagrams
- The diagram shows an exploded view of the EVRAT and EVRST valves.
- Numbered parts 1 through 6 correspond to the components listed in the parts table.
