Installation Guide for Danfoss 068G3250 TEA Element Repair Kit

Quick installation guide for Danfoss TEA and TEAT element repair kits. Includes torque specifications, parts identification, and assembly diagrams for valve sizes 20 and 85.

Table of contents

Manual images

Jump to the section
TEA valve element assembly diagram Page 1 TEAT valve element assembly diagram Page 1 Parts list and seal specifications Page 1

Quick Guide for TEA/TEAT Repair Kit

This document provides installation instructions for the Danfoss element repair kits used with TEA and TEAT valves. It covers assembly procedures for valve sizes 20 and 85. Ensure you have the correct repair kit code number (068G3250, 068G3252, 068G3260, 068G3261, or 068G3262) before beginning the installation.

Assembly Diagrams

The repair kit includes components for the valve element. The installation involves precise assembly of the internal parts. Refer to the provided diagrams for the correct positioning of components 1 through 5. Note that the assembly structure differs slightly between the TEA and TEAT valve models.

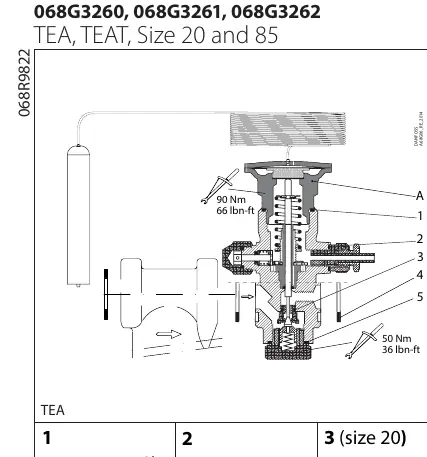

TEA valve element assembly diagram
TEA valve element assembly diagram

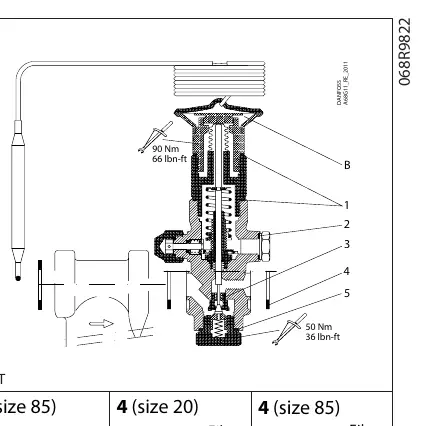

TEAT valve element assembly diagram
TEAT valve element assembly diagram

Torque Specifications

Proper tightening is critical for the integrity of the valve element. Use a calibrated torque wrench to achieve the following settings:

  • Top section: 90 Nm (66 lbn-ft)
  • Bottom section: 50 Nm (36 lbn-ft)

Parts Identification

The kit contains various seals and gaskets. Identify the correct parts based on your valve size (20 or 85) and material type (Aluminium or Fibre). The kit also includes a bulb strap for installation.

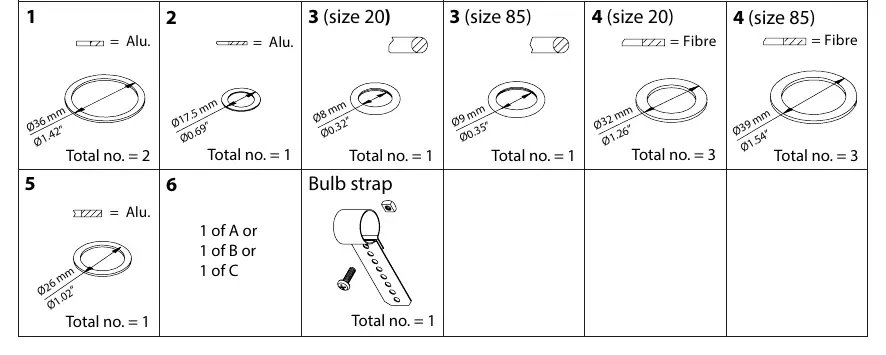

Parts list and seal specifications
Parts list and seal specifications

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Incorrect torque application

Ensure the top section is tightened to 90 Nm (66 lbn-ft) and the bottom section to 50 Nm (36 lbn-ft) to prevent leaks or mechanical failure.

Mixing up seal materials

Verify the material type (Aluminium or Fibre) specified for your specific valve size (20 or 85) before installation.

Before use

  • Verify the valve model (TEA or TEAT)
  • Confirm the valve size (20 or 85)
  • Check the repair kit code number against the valve requirements
  • Ensure a torque wrench is available for installation
  • Identify the correct seals (Alu or Fibre) for the specific assembly
