Danfoss 130BB914.10 VLT HVAC Basic Drive Decoupling Plate Installation Guide
Quick installation guide for mounting the decoupling plate on Danfoss VLT HVAC Basic Drive models H7 and H8, including torque specifications and step-by-step mounting instructions.
Quick guide from the manual
This document provides specific instructions for mounting the decoupling plate onto Danfoss VLT HVAC Basic Drive units, specifically for frame sizes H7 and H8. Proper installation is essential for the correct mechanical configuration of the drive.
Mounting instructions
Follow these steps to install the decoupling plate:

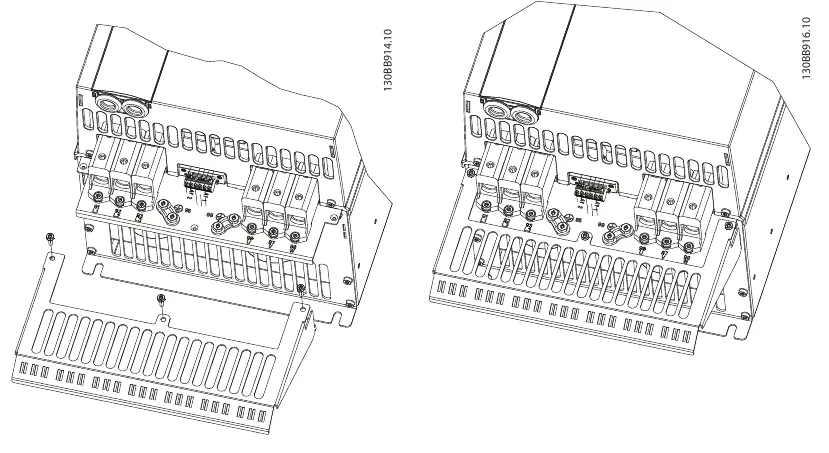

- Position the metal decoupling plate onto the frequency converter.
- Secure the plate using the 3 provided screws.
- Ensure the screws are tightened to a torque of 2Nm.
Once the screws are tightened, the drive is ready for operation with the decoupling plate correctly mounted.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the drive model is H7 or H8
- Ensure the 3 mounting screws are available
- Have a torque tool ready for 2Nm specification
Specs in practice
- Tightening torque
- 2Nm - The specific force required to secure the plate screws to prevent loosening due to vibration.
