This document provides the necessary steps to install the Danfoss 132B0262 blind cover onto a frequency converter. Ensure you have the correct part number before beginning the installation.

Installation

Slide the blind cover into the display cradle located on the top of the frequency converter.
Push the blind cover firmly into place until it is secured.

Manufacturer information

Danfoss A/S

Brand profile

Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Before use

Verify the ordering number is 132B0262.
Ensure the frequency converter is powered down before installation.
Check that the display cradle on the frequency converter is free of debris.

Images and diagrams

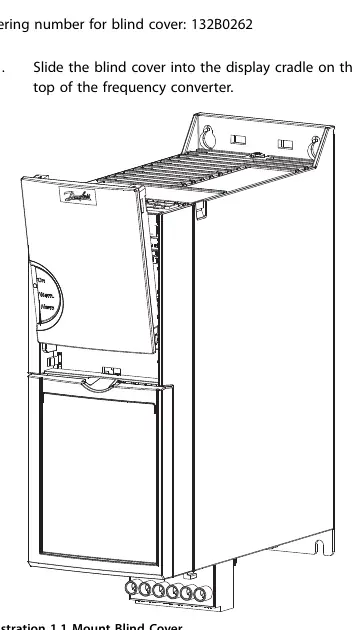

Illustration 1.1 shows the initial positioning of the blind cover into the display cradle.

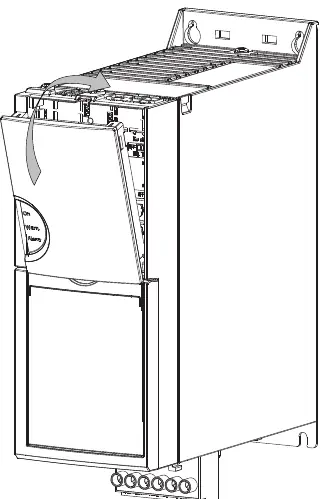

Illustration 1.2 demonstrates pushing the cover into its final position.
Illustration 1.3 shows the completed installation.
