Danfoss VLT HVAC Basic Drive Decoupling Plate Mounting Instruction

Quick installation guide for the Danfoss VLT HVAC Basic Drive decoupling plate. Includes mounting steps and torque specifications for H7 and H8 frame sizes.

Table of contents

Manual images

Click an image to enlarge
Step 1: Mounting the metal plate Page 1 Step 2: Final assembly Page 1

Quick guide from the manual

This document provides instructions for mounting the decoupling plate on Danfoss VLT HVAC Basic Drive units, specifically for frame sizes H7 and H8. Ensure the drive is powered off before beginning the installation.

Installation steps

Follow these steps to install the decoupling plate:

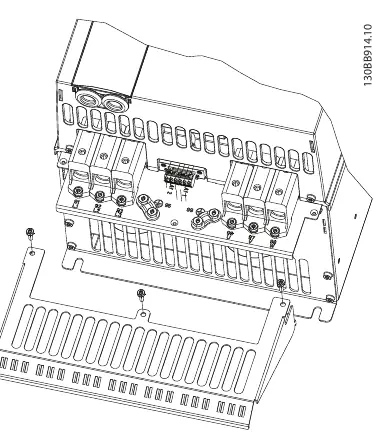

Step 1: Mounting the metal plate
Step 1: Mounting the metal plate

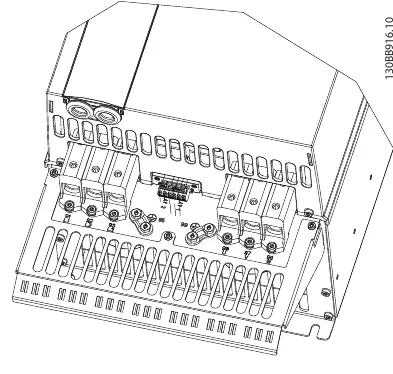

Step 2: Final assembly
Step 2: Final assembly
  1. Position the metal plate on the frequency converter.
  2. Fasten the plate securely using the 3 provided screws.
  3. Ensure the tightening torque is set to 2Nm.

Technical specifications

Tightening torque: 2Nm

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Before use

  • Verify the frequency converter is powered off
  • Confirm the drive frame size is H7 or H8
  • Ensure you have the 3 mounting screws ready

Specs in practice

Tightening torque
2Nm
