Danfoss DEVIreg Plug-In Electronic Thermostat

Product Overview

The DEVIreg Plug-In is an electronic thermostat designed for convenient indoor installation directly into a standard wall socket. Its plug-in design allows for quick and easy connection of cables with Schuko plugs, such as the DEVIpipeheat 10 V2 or V3. This device is primarily intended for controlling lower temperature ranges, making it an ideal solution for frost protection applications. A dedicated sensor cable is required to accurately measure and regulate the desired temperature.

Key Features

• Plug-and-play installation: Simple setup for immediate use.
• Integrated controls: Features a dedicated ON/OFF switch for manual operation.
• Visual feedback: Equipped with an LED indicator for status monitoring.
• Specialized range: Optimized for low-temperature control applications.

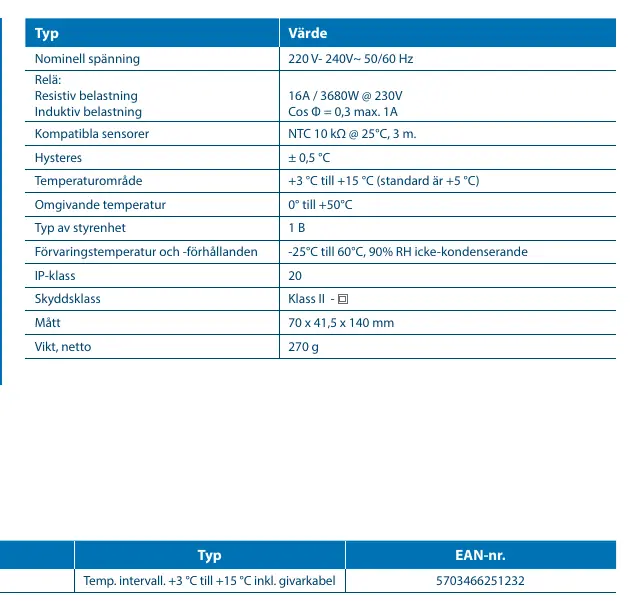

Technical Specifications

The device operates on a nominal voltage of 220V-240V at 50/60 Hz. It supports a resistive load of up to 16A / 3680W at 230V and an inductive load with a maximum of 1A (Cos Φ = 0.3). The thermostat is compatible with NTC 10 kΩ sensors at 25°C. The temperature control range is set between +3°C and +15°C, with a factory default of +5°C and a hysteresis of ± 0.5°C. The unit is rated IP20 and belongs to protection class II.

Safety and Environment

The thermostat is designed for indoor use within an ambient temperature range of 0°C to +50°C. For storage, the device should be kept in conditions between -25°C and +60°C with a maximum relative humidity of 90% (non-condensing). The unit complies with EN/IEC 60730-1 and EN/IEC 60730-2-9 standards, ensuring reliable and safe operation for residential and light commercial environments.

Installation and Operation

Installation is straightforward: plug the unit into a wall socket and connect the compatible sensor cable. Ensure the sensor is correctly positioned to monitor the area requiring frost protection. Use the ON/OFF switch to activate the device and monitor the LED indicator to confirm the thermostat is functioning. The compact dimensions of 70 x 41.5 x 140 mm allow it to fit easily into standard electrical configurations.
