Danfoss 013G3111 Dismantle Tool Operating Guide
Quick guide for the Danfoss 013G3111 dismantle tool, including component identification, valve compatibility, and service insert replacement references for RAVL, RAV, and RA 2000 systems.
Table of contents
Quick guide from the manual
The Danfoss 013G3111 dismantle tool is designed for exchanging valve inserts in Danfoss RAVL, RAV, and RA 2000 valves without the need to drain the system. This tool allows for maintenance under system pressure.

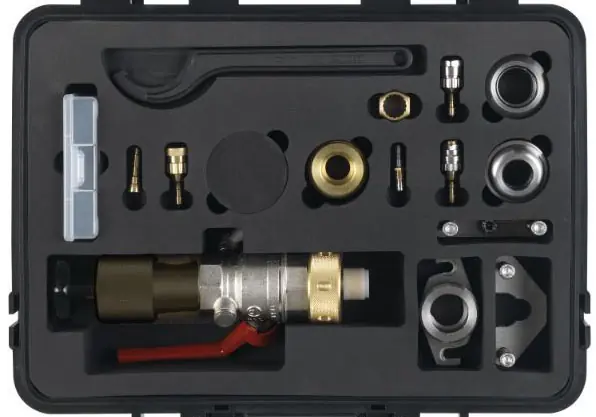

Device components
The kit includes the following essential items:
- Assembled body (Schleuse)
- Spindle system
- Hook wrench for replacement tool
- Mounting nut
- Gland seal replacer/catcher for RAVL
- Various adapters and catchers specific to RA, RAVL, and RAV valve types
- Selection of O-rings and gaskets
Valve compatibility and service inserts
The tool is compatible with specific valve types. Refer to the following replacement list to ensure the correct service insert is used:
- RA-N valves: Compatible with service inserts 013G3063, 013G3064, 013G3065, and 013G3066 depending on size and type.
- RA/V valves: Compatible with service inserts 013U0252 and 013U0253.
- RA/VL valves: Compatible with service inserts 013L0248 and 013L0249.
Always verify the valve type and size (e.g., 3/8", 1/2", 3/4") before selecting the appropriate service insert for replacement.
Manufacturer information
Danfoss A/S
Practical help
Common problems
The tool is specifically designed to allow valve insert exchange in non-drained systems under pressure.
Before use
- Identify the specific valve model (RA, RAVL, or RAV).
- Verify the valve size (3/8", 1/2", or 3/4").
- Select the correct adapter and catcher from the kit for your specific valve type.
- Ensure the appropriate service insert is available for the valve being serviced.
