User Manual for Danfoss 013R9127 Drain and Filling Tap
Quick guide for the Danfoss 013R9127 Drain and Filling Tap. Learn how to properly install, operate, and adjust water flow for radiator maintenance.
Table of contents
Quick guide from the manual
This document provides instructions for the Danfoss RLV drain and filling tap (model 013R9127). It covers the procedure for draining and filling radiators, as well as adjusting water flow for optimal performance.
Installation and Operation

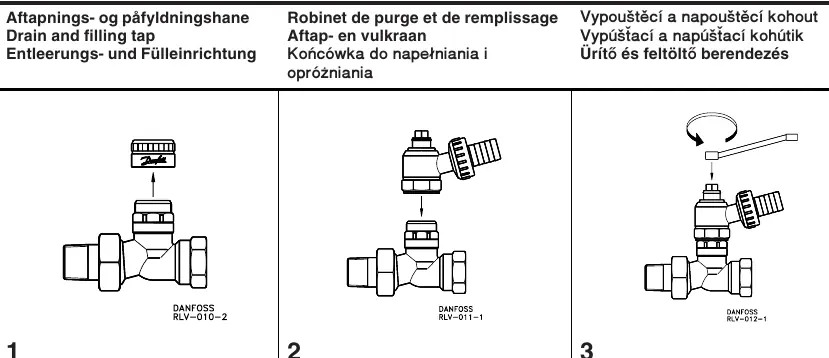

Draining and Filling
- Before starting, block off the radiator inlet and outlet. Always use a Danfoss block-off handwheel for this purpose to ensure proper sealing.
- Open the air-bleeding screw.
- Fit the RLV drain and filling tap in the desired position.
- Open the drain and filling tap fully using a standard square-hole spanner.
Post-Operation and Flow Adjustment
- After completing the draining or filling work, close the valve carefully.
- Remove the drain and filling tap from the radiator.
- To adjust the water flow, use a 6mm hexagon spanner. Turn the spanner towards the open position to set the desired flow.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Difficulty blocking the radiator valve
Always use a dedicated Danfoss block-off handwheel to ensure the inlet and outlet are properly sealed.
Water flow needs adjustment
Use a 6mm hexagon spanner to turn the valve towards the open position to achieve the desired flow rate.
Before use
- Ensure you have a Danfoss block-off handwheel.
- Ensure you have a standard square-hole spanner for opening the tap.
- Ensure you have a 6mm hexagon spanner for flow adjustment.
- Verify the radiator inlet and outlet are accessible.
