Danfoss 087R9071 DH-SM ECL Clip Mounting Kit Installation Guide

Installation guide for the Danfoss 087R9071 DH-SM ECL Clip. Follow these step-by-step instructions to securely mount your ECL controller.

Quick guide from the manual

This document provides the installation procedure for the Danfoss DH-SM ECL Clip (Code No. 087R9071). The guide illustrates the mechanical mounting process for attaching the controller to a mounting surface using the provided clip.

Installation steps

Follow these steps to mount the device:

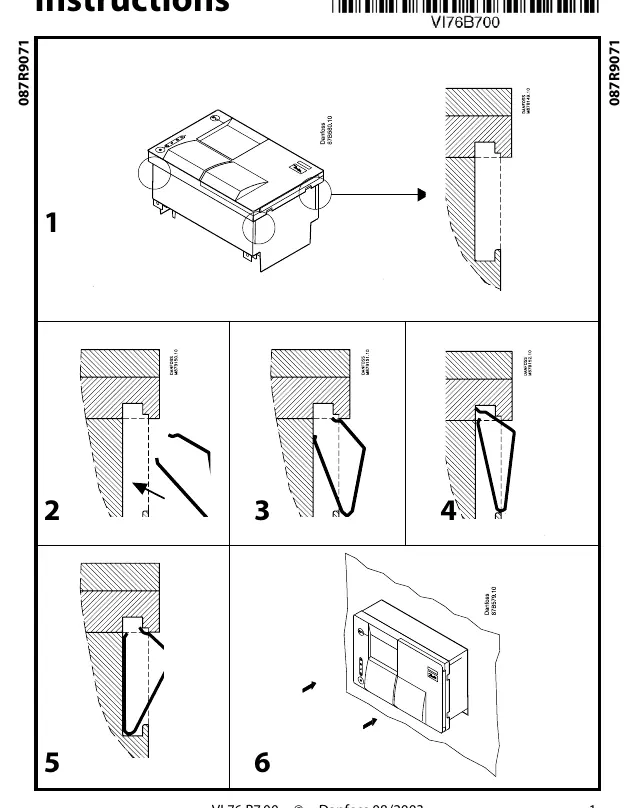

Mounting procedure for the DH-SM ECL Clip
Mounting procedure for the DH-SM ECL Clip
  1. Position the controller against the mounting surface.
  2. Align the DH-SM clip with the mounting slot on the device.
  3. Insert the clip into the designated groove.
  4. Ensure the clip is properly seated.
  5. Press the clip firmly to lock the device into position.
  6. Verify that the device is securely attached and stable.

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Device is loose after installation

Ensure the clip is fully snapped into the groove and the device is pressed firmly against the mounting surface.

Clip does not fit

Verify that the controller model is compatible with the DH-SM mounting kit.

Before use

  • Ensure the mounting surface is flat and stable.
  • Verify the controller model is compatible with the DH-SM clip.
  • Check that the clip is free from damage before installation.
