Installation Guide for Danfoss 032F2341 EVRA Overhaul Kit
Quick installation and parts reference guide for the Danfoss 032F2341 EVRA size 32 overhaul kit. Includes exploded view diagrams and component specifications for maintenance.
Table of contents
Quick guide from the manual
This document serves as the official parts list and installation reference for the Danfoss 032F2341 Overhaul Kit, designed for EVRA valves, size 32. It provides an exploded view diagram and a detailed breakdown of all components included in the kit to assist in maintenance and repair procedures.

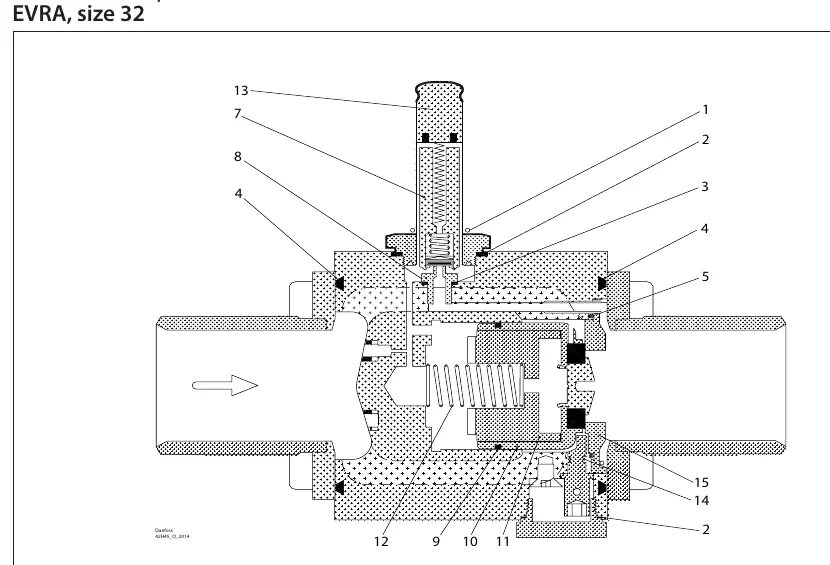

Exploded View and Assembly
The provided diagram illustrates the internal assembly of the EVRA size 32 valve. Use this reference to identify the correct placement and orientation of components during maintenance or overhaul procedures. The diagram maps specific parts (numbered 1 through 15) to their location within the valve body.
Component List
The kit contains 15 distinct components. Ensure all parts are present before beginning the overhaul. Key components include:
- Seals and Rings: Various seals (parts 1, 2, 3, 4, 5, 14) with specific diameter specifications.
- Internal Mechanisms: Valve stems, springs, and housing components (parts 7, 8, 9, 10, 11, 12, 13, 15).
- Material Notes: Some components are specified by material type (e.g., Aluminum or Steel) to ensure correct identification during assembly.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the valve is size 32 before starting the overhaul.
- Ensure the system is depressurized and isolated before disassembly.
- Compare the contents of your kit against the 15 items listed in the diagram.
- Check for specific material requirements (e.g., Aluminum vs. Steel parts) as noted in the diagram.
Specs in practice
- Code 032F2341
- Specific identifier for the EVRA size 32 overhaul kit.
