Danfoss Graphical LCP Adapter 132B0281 Installation Guide
Quick installation guide for the Danfoss Graphical LCP Adapter (132B0281). Includes kit contents and mounting instructions for connecting the VLT Control Panel LCP 102.
Table of contents
Quick guide from the manual
This document provides installation instructions for the Danfoss Graphical LCP Adapter. The primary purpose of this adapter is to connect the VLT Control Panel LCP 102 to a frequency converter via a cable.
Items supplied
The document covers two specific kits:
- Graphical LCP adapter (Code 132B0281): Includes the GLCP adapter and 2 screws.
- LCP remote mounting kit (Code 130B1113): Includes the Graphical LCP, fasteners, a 3 m (9.8 ft) cable, and a gasket.
Mounting the Option
To install the adapter, follow the visual guidance provided in the installation diagram. Ensure the device is properly aligned with the frequency converter interface before securing it with the provided screws.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Identify the correct kit code (132B0281 for the adapter or 130B1113 for the remote mounting kit).
- Ensure the VLT Control Panel LCP 102 is available for connection.
- Verify all components listed in the 'Items supplied' section are present before starting installation.
Images and diagrams

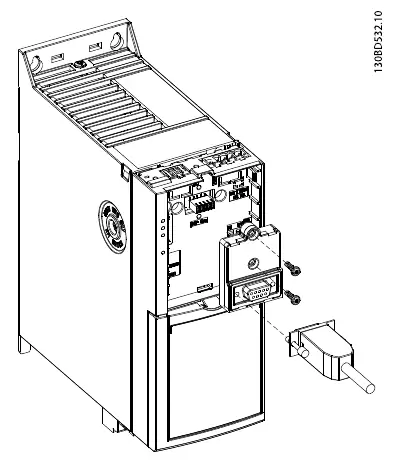

- Illustration 1.1 demonstrates the physical mounting process of the adapter onto the frequency converter unit.
